Element WS MONO DIM DMX 1
Order number: LG5485
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Short information
- Order number: : LG5485
- Input Current: DC 12-24V
- IP Code: 20
- Housing Color: white
- Dimensions: 86x86x30 mm
- Warranty: 2 years
IP Code
IP 20
mounting type
Dimensions
(LxBxH) in mm
86x86x30
Warranty
2 years
CONTROLS / ELEMENT SERIES For comfortable control of LED strips and low-voltage... more
Product information "Element WS MONO DIM DMX 1"
CONTROLS / ELEMENT SERIES
For comfortable control of LED strips and low-voltage lights, we offer various systems. You can choose between wireless, Wifi- or DMX connection and benefit from the respective advantages.
WS MONO DIM DMX 1

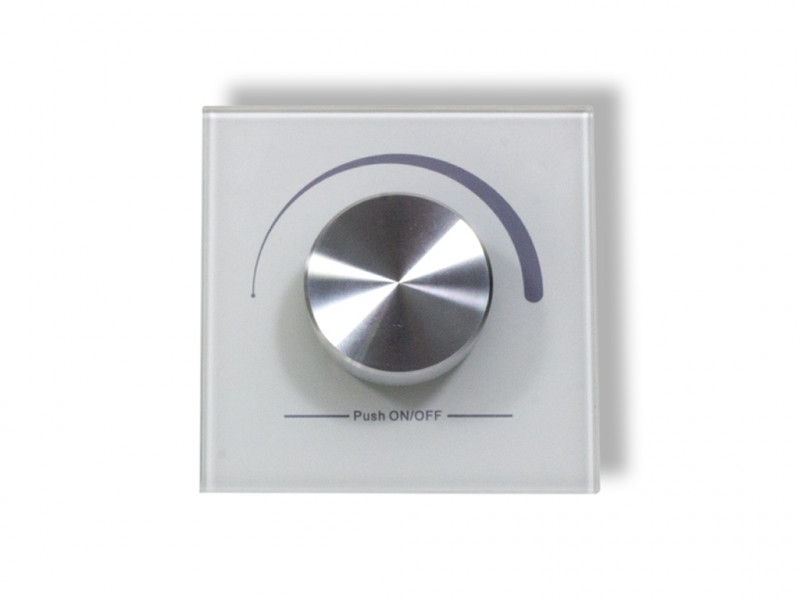

The Litegear Element Wall Dimmer is a DMX rotary dimmer. Pressing the rotary wheel switches the suitable controller on or off. The brightness is adjusted by turning. Flicker-free dimming of 1-100%. For remote control you need a suitable controller and a cable connection (DMX bus). To power the wall dimmer, an external power supply is required.
Properties:
⦁ Control signal to the LED controller via 3-4-core cable (DMX bus)
⦁ necessary
Related links to "Element WS MONO DIM DMX 1"
Technical Details:
| Input Current: | DC 12-24V |
| Output of Driver: | DC 12-24V |
| CC/CV: | CV |
| Ambient Temperature (TA): | -10°C - 40°C |
| Dimensions: | 86x86x30 mm |
| Montageart: | recessed |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | plastic |
| Special Feature of Housing: | Wall installation |
| Net Weight: | 137 g |
| Zones: | 1 |
| Channels: | 1 |
| Dimming: | 1-100% |
| Weight incl. Packaging: | 0.192 kg |
| Product Line: | Advance Line |
| Warranty | 2 years |
| Certifications | CE |
| Barcode: | 4250557806396 |
| DMX Wandeinbau Dimmer 1 Kanal | |
| DMX wall dimmer 1 chanel | |
| externe Spannungsversorgung nicht enthalten 12-24V | |
| external power supply not included 12-24V DC | |
