DALI Schaltaktor Switch 1 CH 16A/165A(p) UP
Order number: LG55170
Prices are only visible after login.
Availability: Delivery time 3-8 working days
Dimensions
Short information
- Order number: : LG55170
- Power Draw: 1 W
- Input Current: AC 230V, 50/60Hz
- IP Code: 20
- Housing Color: grey
- Dimensions: 71x31 mm
- Warranty: 2 years
Power Draw
1 W
IP Code
IP 20
mounting type
Dimensions
(ØxH) in mm
71x31
Warranty
2 years
DALI actuator Switch 1 CH 16A / 165A (p) UP 1-channel DALI switch actuator for... more
Product information "DALI Schaltaktor Switch 1 CH 16A/165A(p) UP"

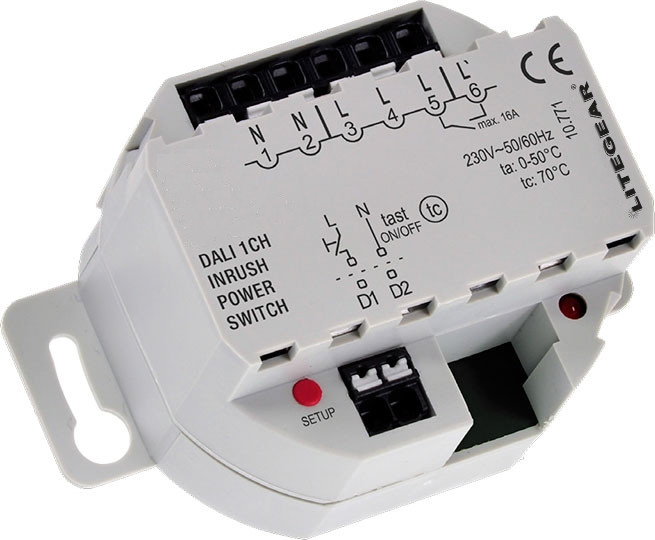

DALI actuator Switch 1 CH 16A / 165A (p) UP
1-channel DALI switch actuator for installation in deep flush-mounted / surface-mounted boxes or lights
The DALI switch actuator Switch 1 CH 16A / 165A (p) UP is a single-channel DALI switch module with normally open contact for integrating any consumer into the DALI circuit for loads with high inrush currents with capacitive load components.
Technical specifications:
Max. Rated load: 3680VA
Max. Switching current: 16A
Contact relay: 1 normally open contact
Cross-section of connecting wire: 0.5 - 1.5mm²
Related links to "DALI Schaltaktor Switch 1 CH 16A/165A(p) UP"
Technical Details:
| Method of Dimming: | DALI |
| Input Current: | AC 230V, 50/60Hz |
| Power Consumption: | 1 W |
| Input Driver: | terminal |
| Switching Cycles: | >30.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | 0°C - 50°C |
| Storage Temperature: | 0°C - 50°C |
| Dimensions: | 71x31 mm |
| Montageart: | recessed |
| IP Class: | 20 |
| Housing Color | grey |
| Housing Material: | plastic |
| Special Feature of Housing: | Tiefe Unter-/Aufputzdosen |
| Net Weight: | 49 g |
| Channels: | 1 |
| Type of Packaging: | box |
| Weight incl. Packaging: | 0.068 kg |
| Content Master Package: | 2 |
| Product Line: | Advance Line |
| Warranty | 2 years |
| Certifications | CE,VDE |
| Barcode: | 4250557820835 |
| Dali Bus Schaltrelais | |
| max. Schaltlast 3680VA | |
| max. Schaltstrom 16A | |
| max. Querschnitt: 1,5mm² | |
