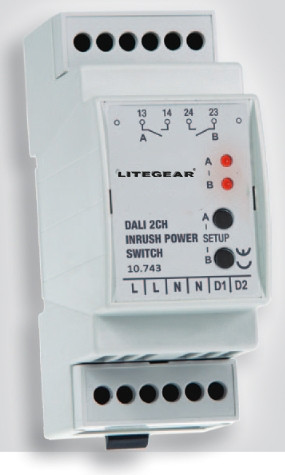

DALI Schaltaktor Switch 2 CH 16A/165A(p) REG 2TE
Order number: LG55172
Prices are only visible after login.
Availability: Delivery time 3-8 working days
Dimensions
Short information
- Order number: : LG55172
- Power Draw: 1 W
- Input Current: AC 220 - 240V, 50/60Hz
- IP Code: 20
- Housing Color: grey
- Dimensions: 101,5x54x29,5 mm
- Warranty: 2 years
Power Draw
1 W
IP Code
IP 20
mounting type
Dimensions
(LxBxH) in mm
101,5x54x29,5
Warranty
2 years
DALI actuator Switch 2 CH 16A / 165A (p) REG 2TE 2-channel The DALI... more
Product information "DALI Schaltaktor Switch 2 CH 16A/165A(p) REG 2TE"
DALI actuator Switch 2 CH 16A / 165A (p) REG 2TE
2-channel
The DALI switch actuator each chanel 16A / 165A (p) REG 2 TE is a two-channel DALI switch actuator with a normally open contact for integrating any consumer into the DALI circuit for loads with high inrush currents with capacitive loads.
For installation in switch and distribution cabinet systems on 35mm top-hat rails.
Use only in correctly suppressed electrical systems.
Technical specifications:
Max. Rated load: 3680VA
Max. Switching current: 16A
Contact relay: 2 normally open contacts
For installation in switch and distribution cabinet systems on 35mm top-hat rails.
Cross-section connection terminal: 0.2 - 2.5mm² finely stranded; 0.2 - 4mm² single wire
Related links to "DALI Schaltaktor Switch 2 CH 16A/165A(p) REG 2TE"
Technical Details:
| Method of Dimming: | DALI |
| Input Current: | AC 220 - 240V, 50/60Hz |
| Power Consumption: | 1 W |
| Input Driver: | terminal |
| Switching Cycles: | >30.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | 0°C - 50°C |
| Dimensions: | 101,5x54x29,5 mm |
| Montageart: | recessed |
| IP Class: | 20 |
| Housing Color | grey |
| Housing Material: | plastic |
| Special Feature of Housing: | Für die Hutschiene |
| Net Weight: | 74 g |
| Channels: | 2 |
| Type of Packaging: | box |
| Weight incl. Packaging: | 0.84 kg |
| Content Master Package: | 1 |
| Product Line: | Advance Line |
| Warranty | 2 years |
| Certifications | CE,VDE |
| Barcode: | 4250557820859 |
| Dali Bus Schaltrelais | |
| max. Schaltlast 3680VA | |
| max. Schaltstrom 16A | |
| max. Querschnitt: 2,5mm² feindrahtig/4mm² eindrah. | |
