DALI Schaltaktor Switch 1 CH 16A/165A(p) INS für den Decken- /Hohlraumeinbau
Order number: LG55171
Prices are only visible after login.
Availability: Delivery time 3-8 working days
Dimensions
Short information
- Order number: : LG55171
- Input Current: AC 220 240V, 50/60Hz
- IP Code: 20
- Housing Color: grey
- Dimensions: 101,5x54x29,5 mm
- Warranty: 2 years
IP Code
IP 20
mounting type
Dimensions
(LxBxH) in mm
101,5x54x29,5
Warranty
2 years
DALI actuator Switch 1 CH 16A / 165A (p) INS for ceiling / cavity installation 1-channel... more
Product information "DALI Schaltaktor Switch 1 CH 16A/165A(p) INS für den Decken- /Hohlraumeinbau"

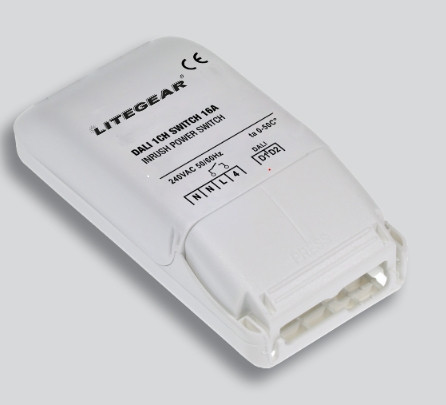

DALI actuator Switch 1 CH 16A / 165A (p) INS for ceiling / cavity installation
1-channel DALI switch actuator
The DALI switch actuator Switch 1 CH 16A / 165A (p) INS enables any consumer to be controlled in DALI. It is the perfect solution for enabling switching functions with the DALI standard without installing additional control lines.
The device is equipped with an energy-saving bistable relay. No holding current is required for the relay. The set DALI power-on level controls whether the relay contact is open or closed when the device is switched on. For mains isolation, disconnection of idle supply units.
Installation housing for use indoors, for installation in ceilings, lights and floor ducts or for wall mounting.
Technical specifications:
Max. Rated load: 3680VA
Max. Switching current: 16A
Contact relay: 1 normally open contact
Cross-section connection terminal: 0.2 - 2.5mm² finely stranded; 0.2 - 4mm² single wire
Related links to "DALI Schaltaktor Switch 1 CH 16A/165A(p) INS für den Decken- /Hohlraumeinbau"
Technical Details:
| Method of Dimming: | DALI |
| Input Current: | AC 220 240V, 50/60Hz |
| Input Driver: | terminal |
| Switching Cycles: | >30.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | 0°C - 50°C |
| Storage Temperature: | 0°C - 50°C |
| Dimensions: | 101,5x54x29,5 mm |
| Montageart: | recessed |
| IP Class: | 20 |
| Housing Color | grey |
| Housing Material: | plastic |
| Special Feature of Housing: | Zugentlastet |
| Net Weight: | 74 g |
| Channels: | 1 |
| Type of Packaging: | box |
| Weight incl. Packaging: | 0.84 kg |
| Content Master Package: | 1 |
| Product Line: | Advance Line |
| Warranty | 2 years |
| Certifications | CE,VDE |
| Barcode: | 4250557820842 |
| Dali Bus Schaltrelais | |
| max. Schaltlast 3680VA | |
| max. Schaltstrom 16A | |
| max. Querschnitt: 2,5mm² feindrahtig/4mm² eindrah. | |
