Order number: LG5532
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Short information
- Order number: : LG5532
- Power Draw: 288 W
- Input Current: DC 5-24V, 1200mA
- IP Code: 20
- Housing Color: white
- Dimensions: 74,5x35,6x16,5 mm
- Warranty: 3 years
Power Draw
288 W
IP Code
IP 20
mounting type
Dimensions
(LxBxH) in mm
74,5x35,6x16,5
Warranty
3 years
INTERVENT-SERIES: RF Receiver controller dual white Radio Frequency... more

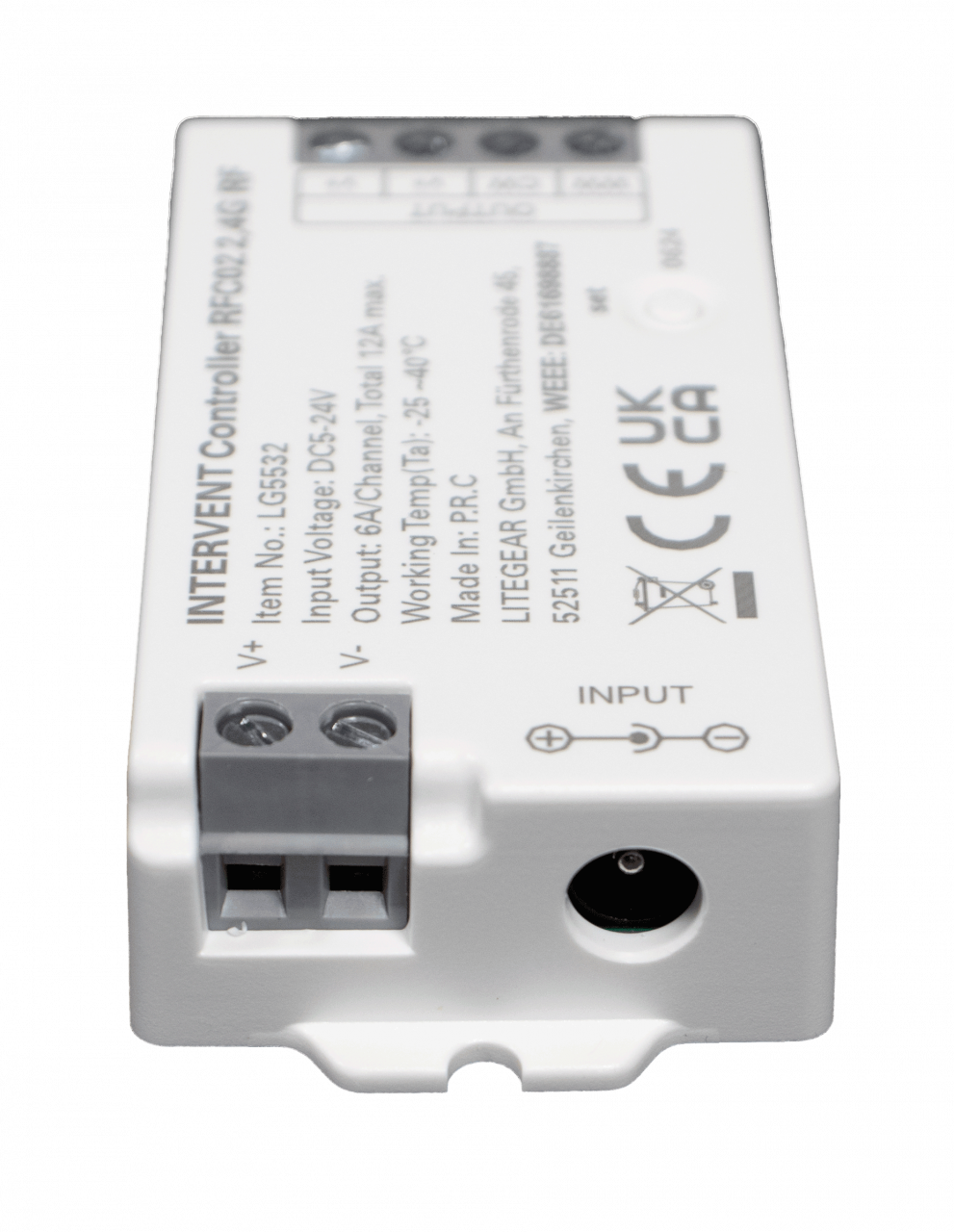

Product information "LITEGEAR INTERVENT RFC02 2,4G RF Controller/Dimmer 2 Channels"
INTERVENT-SERIES: RF Receiver controller dual white
- Radio Frequency receiver 2,4GHz maximum operation distance: 30m
- Wireless controller for 5-24V DC LED strip converter/dimmer dual white 2 channels
- Easy Set-Up and operation
- Can be connected to several remotes and set up in Zones/groups.
- individual smooth dimming
- an additional power supply 5-24V DC is needed max. 1200mA
- 2 outputs max. 6A, total 12A
- Screw terminals
Applications:
Office, Shop and residential
- Controller 5-24V DC LED-Strip
- controlled via RF remote or Tuya, Smart Life App Gateway
compatible RF remotes or Gateways see accessories!
Related links to "LITEGEAR INTERVENT RFC02 2,4G RF Controller/Dimmer 2 Channels"
Technical Details:
Dimmable: | |
Method of Dimming: | Funk |
Input Current: | DC 5-24V, 1200mA |
Power Consumption: | 288 W |
Input Driver: | terminal |
Output of Driver: | DC 5-24V, 1200mA |
CC/CV: | CV |
Input Lamp: | terminal |
Switching Cycles: | >100.000 |
Ambient Temperature (TA): | -20°C - 40°C |
Storage Temperature: | -20°C - 55°C |
Dimensions: | 74,5x35,6x16,5 mm |
Montageart: | surface mounted |
IP Class: | 20 |
Housing Color | white |
Housing Material: | plastic |
Special Feature of Housing: | V-0 Anti-fire PC |
Net Weight: | 20 g |
Zones: | 1 |
Channels: | 2 |
Dimming: | 1-100% |
Transmission Frequency: | 2,4 GHz |
Product Line: | Advance Line |
Warranty | 3 years |
Operating Hours: | >30.000 h |
Disposal Obligation: | |
Certifications | CE |
Barcode: | 4250557824987 |
2 Channels/Kanäle Dim-Controller 2,4GHz dual white | |
1 Zone, beliebig viele Empfänger | |
5-24V DC Input 6A/Ch. 12A max. | |
max. 60W@5V, 144W@12V, 288W@24V | |
2400-2483,5MHz max. 30m Reichweite |
