LITEGEAR INTERVENT RFC05 2,4G RF Controller/Dimmer 5 Channels RGBCCT
Order number: LG5535
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
INTERVENT-SERIES: RF Receiver controller 5 channels RGB, RGBW,RGBCCT ... more
Product information "LITEGEAR INTERVENT RFC05 2,4G RF Controller/Dimmer 5 Channels RGBCCT"
INTERVENT-SERIES: RF Receiver controller 5 channels RGB, RGBW,RGBCCT

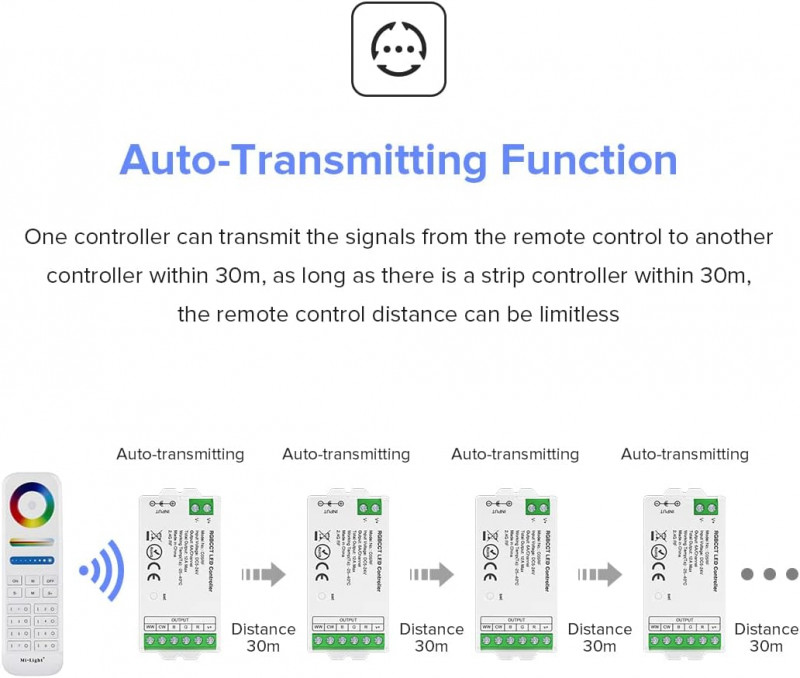

- Radio Frequency receiver 2,4GHz maximum operation distance: 30m
- Wireless controller for 5-24V DC LED strip converter/dimmer max. 5 channels
- Easy Set-Up and operation

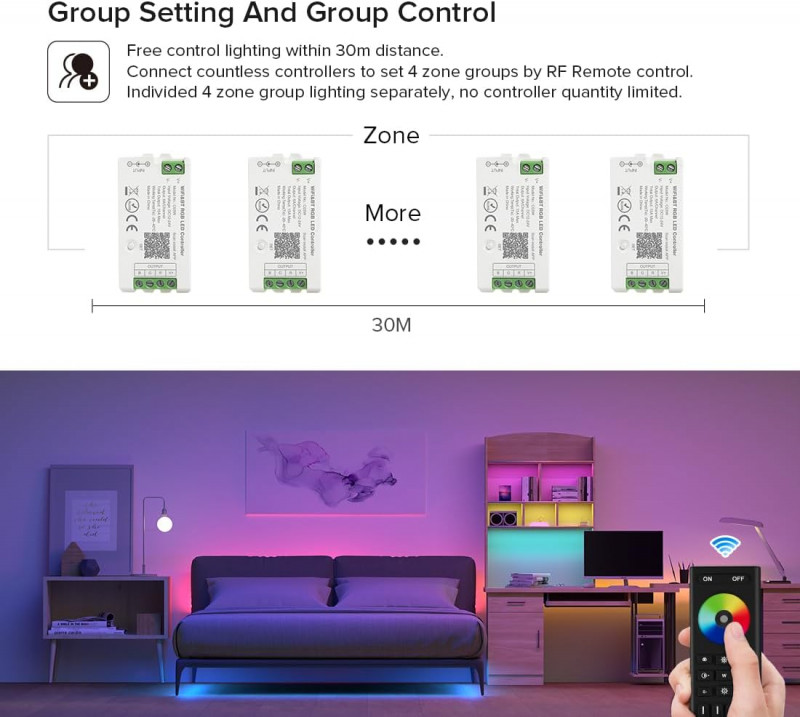

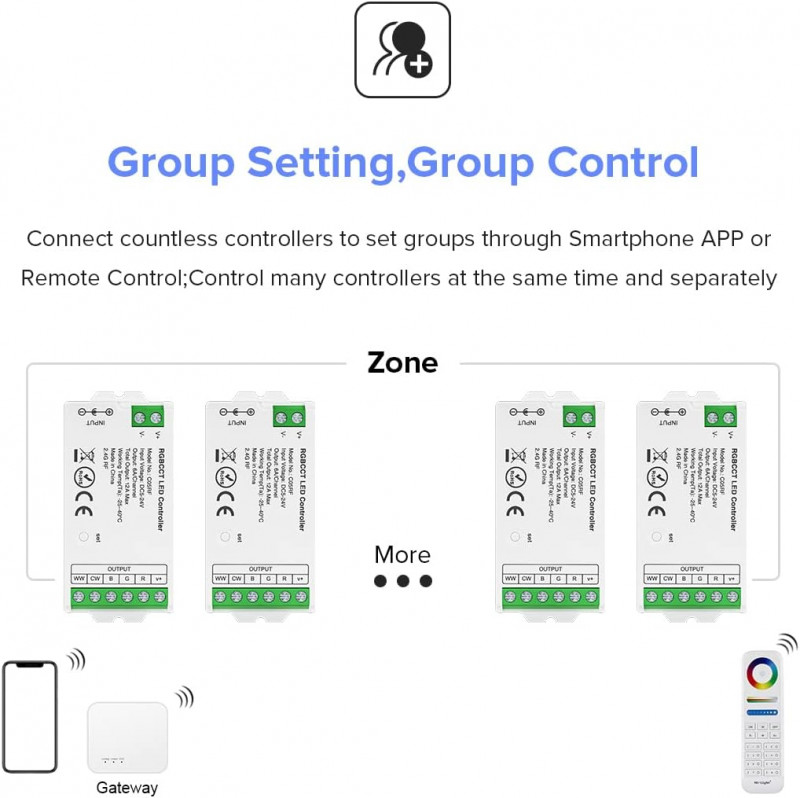

- Can be connected to several remotes and set up in Zones/groups.
- individual smooth dimming
- an additional power supply 5-24V DC is needed max. 1200mA

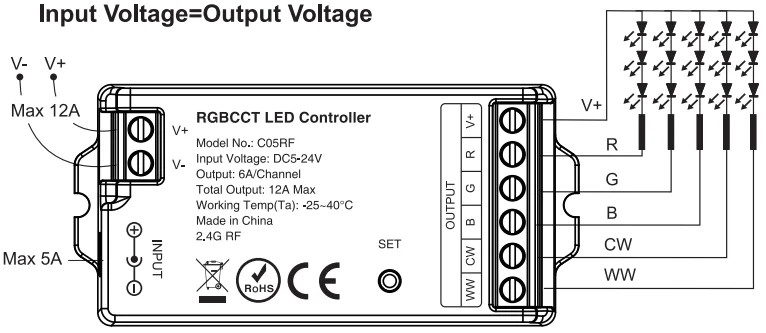

- 5 outputs max. 6A/Ch., total 12A
- Screw terminals
Applications:
Office, Shop and residential
- Controller 5-24V DC LED-Strip
- controlled via RF remote or Tuya, Smart Life App Gateway
compatible RF remotes or Gateways see accessories!
Related links to "LITEGEAR INTERVENT RFC05 2,4G RF Controller/Dimmer 5 Channels RGBCCT"
Technical Details:
| Dimmable: |  |
| Method of Dimming: | Funk |
| Input Current: | DC 5-24V, 1200mA |
| Power Consumption: | 288 W |
| Input Driver: | terminal |
| Output of Driver: | DC 5-24V, 1200mA |
| CC/CV: | CV |
| Input Lamp: | terminal |
| Switching Cycles: | >100.000 |
| Ambient Temperature (TA): | -20°C - 40°C |
| Storage Temperature: | -20°C - 55°C |

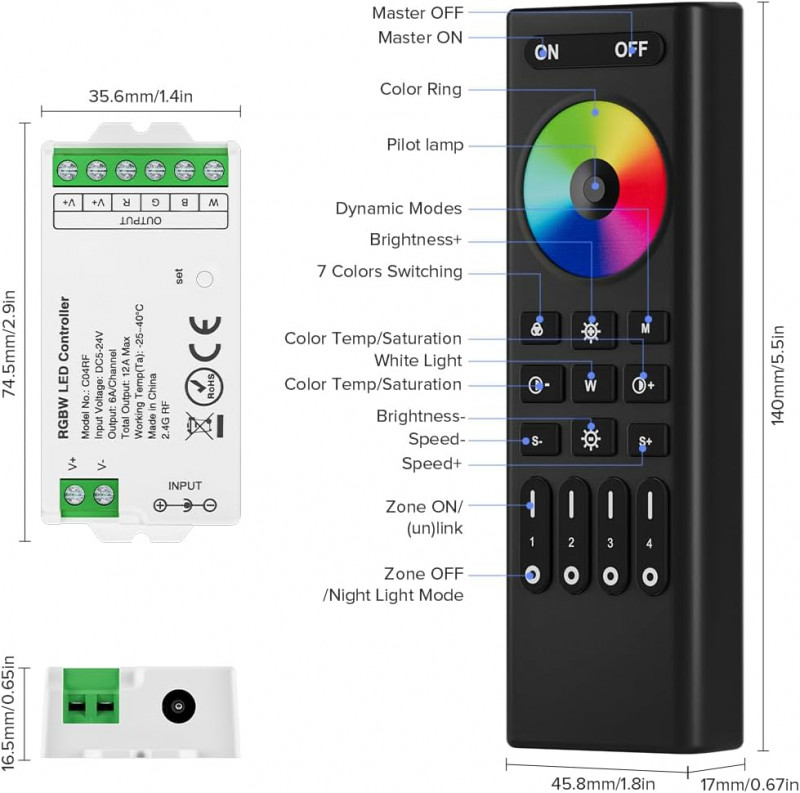

| Dimensions: | 74,5x35,6x16,5 mm |
| Montageart: | surface mounted |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | plastic |
| Special Feature of Housing: | V-0 Anti-fire PC |
| Net Weight: | 20 g |
| Zones: | 1 |
| Channels: | 5 |
| Dimming: | 1-100% |
| Transmission Frequency: | 2,4 GHz |
| Product Line: | Advance Line |
| Warranty | 3 years |
| Operating Hours: | >30.000 h |
| Disposal Obligation: | |
| Certifications | CE |
| Barcode: | 4250557824994 |
| 5 Channels/Kanäle Dim-Controller 2,4GHz RGBCCT | |
| 1 Zone, beliebig viele Empfänger | |
| 5-24V DC Input 6A/Ch. 12A max. | |
| max. 60W@5V, 144W@12V, 288W@24V | |
| 2400-2483,5MHz max. 30m Reichweite | |
