Estella VARIO CCT 80-927-950-9320LM Dim Sensor

LG14366
Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

  • LG14366
  • Luminous Flux: 8800 lm
  • Power Draw: 77 W
  • Light Color: Vario CCT (2700-5000 K)
  • Color Rendering Index (CRI): ≥90 Ra
  • IP Code: 20
  • Beam Angle: 110x90°
  • LED-Chip: SMD 2835
  • Housing Color: black
  • Dimensions: 600x300x1950 mm
  • Warranty: 5 years

Luminous Flux

8800
lm

Power Draw

77 W

Light Color

2700-5000 K
Vario CCT

Color Rendering Index (CRI)

CRI
>90 Ra

IP Code

IP 20

Beam Angle

110x90°

ground

Dimensions

(LxBxH) in mm
600x300x1950

Warranty

5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

LED office floor lamp     The Estella Vario CCT is an elegant floor... more
Product information "Estella VARIO CCT 80-927-950-9320LM Dim Sensor"

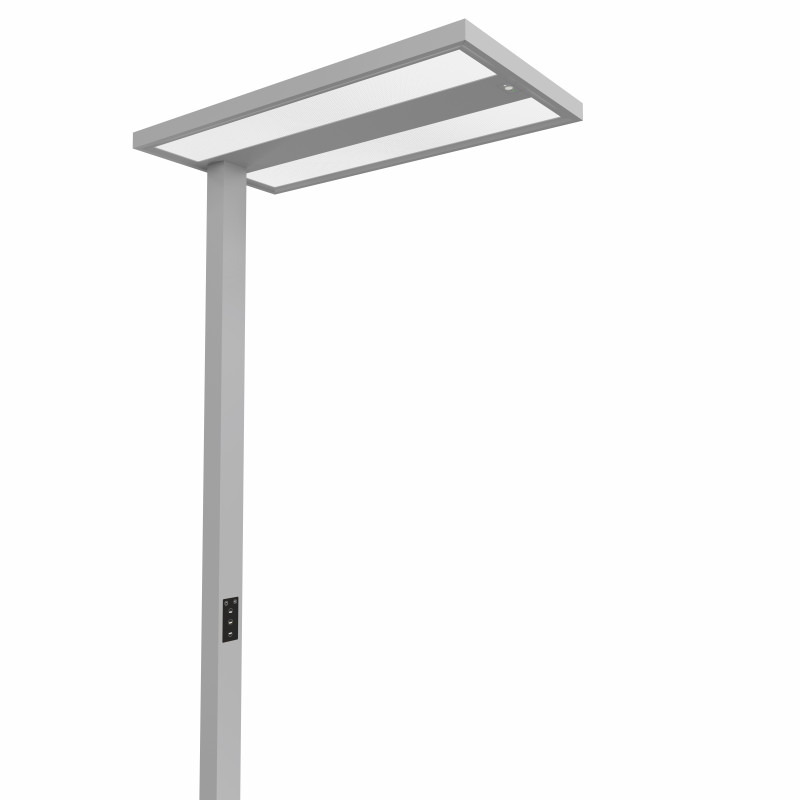

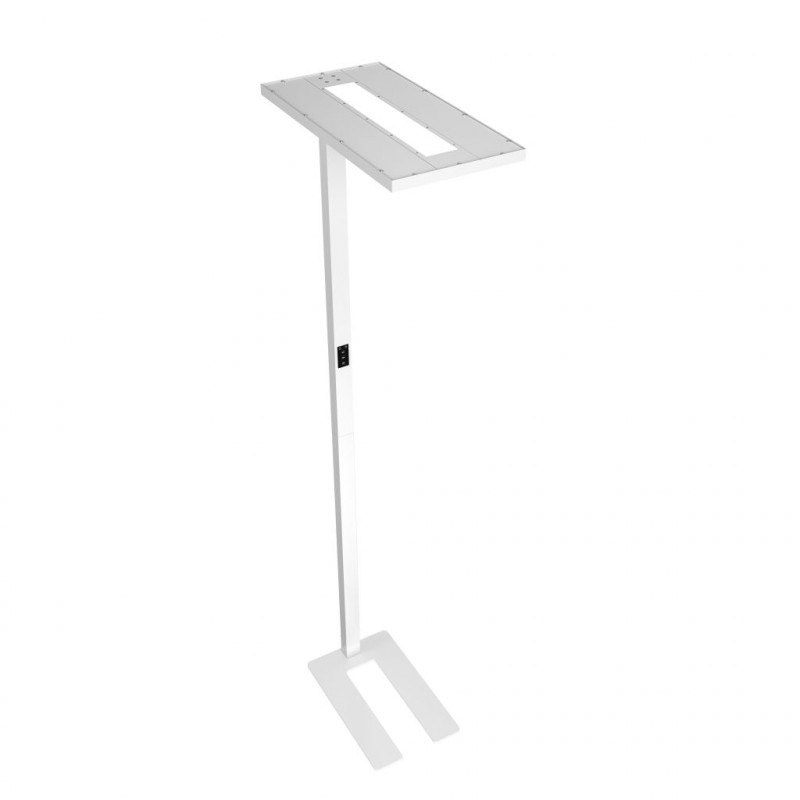

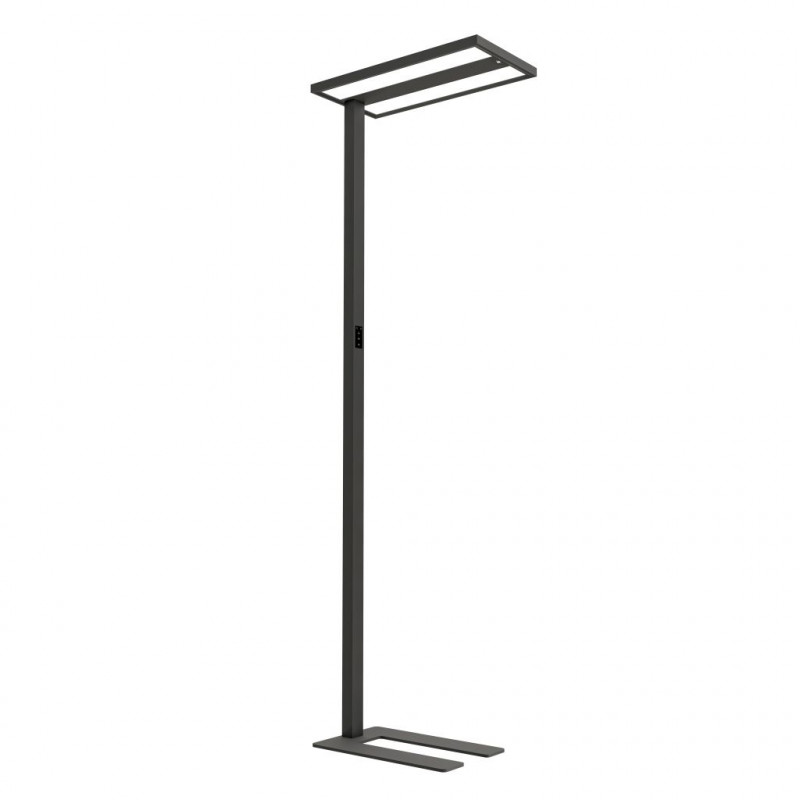

LED office floor lamp


The Estella Vario CCT is an elegant floor lamp for perfect illumination of desks in open-plan offices and executive floors. The luminaire only needs a socket near the desk and can therefore be flexibly set up. The combination of direct and indirect light with the stepless selectable CCT light color ensures homogeneous illumination. The brightness level for direkt and indirekt can be adjusted individually. The lower optical cover is provided to reduce the glare effect UGR <16 due to DIN EN 12464-1 , with a microprismatic diffusor. This technic protects the eyes and increases the concentration at work. The brightness of 500 Lux can beautomatically controlled  via the sensor button. An integrated occupancy sensor will switch of the luminaire after half an hour when you have left the workdesk. Both functions can be disabled. Flat steel foot that can be shoven under the foots of the desk. This floor lamp is delivered in 2 parts for a compacter transportation box. Available in 3 housing colors: black, white, silver
Related links to "Estella VARIO CCT 80-927-950-9320LM Dim Sensor"
Technical Details:

Luminous Flux: 8800 lm
Light Yield: 114 lm/W
Light Temperature: 2700-5000 K
Light Color: Vario CCT
Color Rendering Index: ≥90 Ra
Color Consistency (SDCM): <2
Beam Angle: 110x90 °
Unified Glare Rating (UGR): 16
Light Emission: upward/downward
Dimmable: ja
Method of Dimming: Push-Dim
LED-Chip: SMD 2835
Ignition Time: <0,5 s
Power Consumption: 77 W
Contains Driver: ja
Driver Manufacturer: Boke
Power Factor (PF): >0.95
Input Driver: cable with plug
CC/CV: CC
Input Lamp: plug connector
Switching Cycles: >100.000
Electrical Protection Class: I
Ambient Temperature (TA): -20°C - 40°C
Storage Temperature: -40°C - 60°C
Dimensions: 600x300x1950 mm
Mounting: ground
IP Class: 20
Housing Color black
Housing Material: aluminum
Coating: lacquered
Special Feature of Housing: Steel base
Cover: prismatic
Net Weight: 13200 g
Type of Packaging: box
Dimensions of Packaging: 1100x365x125
Weight incl. Packaging: 15.3 kg
Content Master Package: 1
Dimensions of Master Package: 1100x365x125 mm
Weight Master Package: 15,3 kg
Product Line: Advance Line
Warranty 5 years
Operating Hours: >50.000 h L80/B10
Disposal Obligation: ja
Customs Tariff Number: 9405499090
Certifications CE,SELV
Barcode: 4250557823720
LSS: B10 18 Leuchten, B16: 20 Leuchten
Vario CCT: 2700K bis 5000K
daylightdimmung automatisch
Bewegungssensor, deaktivierbar

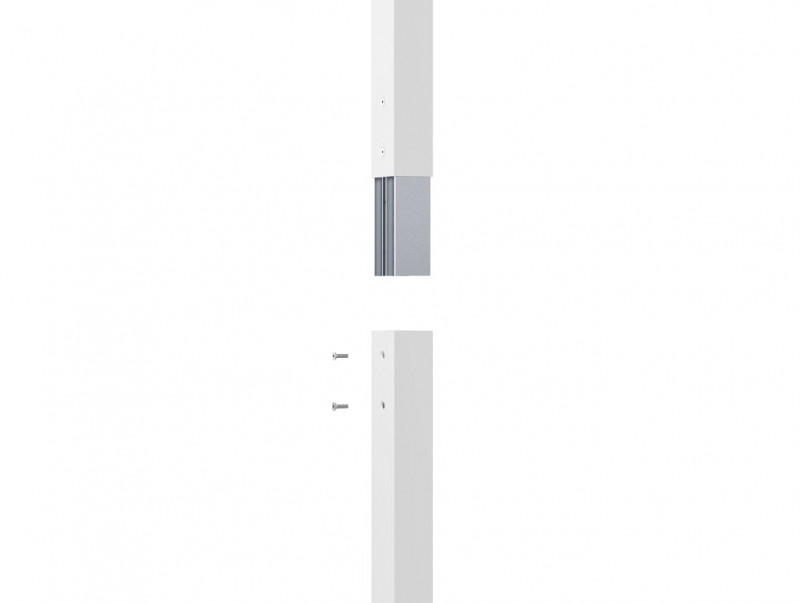

zweigeteilter Mast, Sensor Touch Pad
