Product Info (PDF)

Order number: LG10652

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Menü schließen

Order number: : LG10652
Luminous Flux: 2400 lm
Power Draw: 30 W
Light Color: warmwhite (3000 K)
IP Code: 20

Beam Angle: 36°
LED-Chip: Citizen COB
Housing Color: silver
Dimensions: 265x94x80 mm
Cut-Out Dimensions: 245x80 mm

Luminous Flux

2400
lm

Power Draw

30 W

Light Color

3000 K
warmwhite

IP Code

IP 20

Beam Angle

36°

mounting type

Light Direction

Dimensions

(LxBxH) in mm
265x94x80

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

Recessed ceiling spot Litegear® Livia is a stylish ceiling recessed spot... more

Close menu

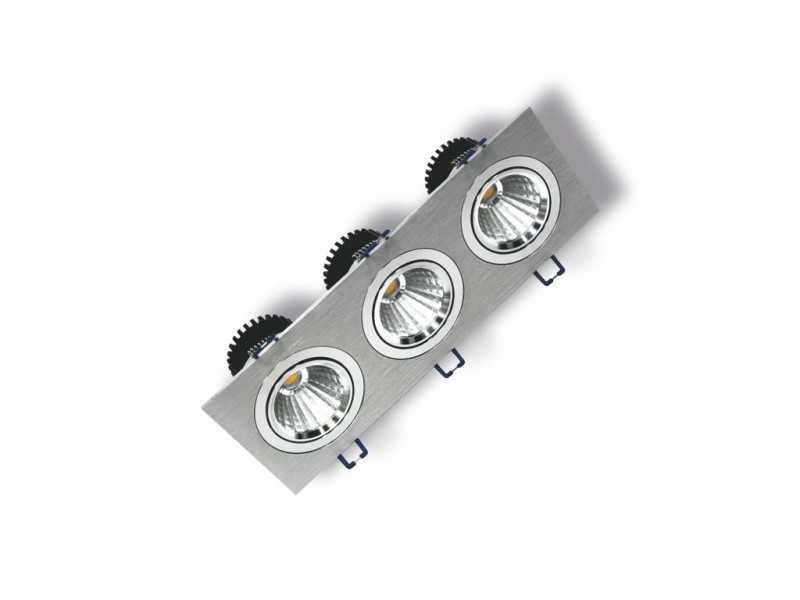

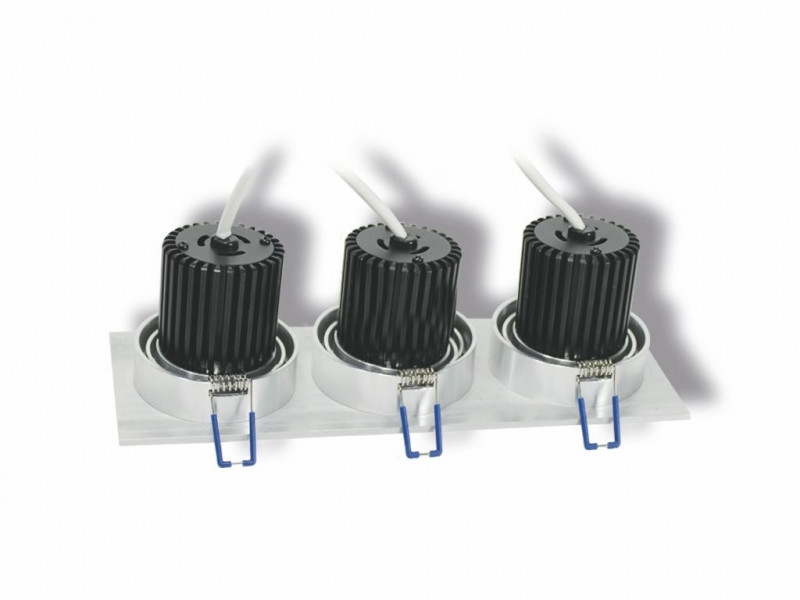

Product information "Livia Triple 30-830-2400LM"

Recessed ceiling spot

Litegear® Livia is a stylish ceiling recessed spot with a brushed aluminum frame. Livia is available in 3 different versions, from one to three adjustable spots. Each spot is equipped with a COB LED chip. The light is concentrated in a reflector and is therefore ideal for accentuated lighting. The individual light inserts can be rotated and swiveled around an axis (+/- 20 °). Each LED chip requires an external power supply. The light color is very pleasant for living areas, conference rooms or sales areas. The high efficiency ensures fast amortization with extremely low follow-up costs compared to halogen downlights.

Please order suitable power supply! see accessories

Related links to "Livia Triple 30-830-2400LM"

Zurück

Technical Details:

Luminous Flux:	2400 lm
LED Output:	27 W
Light Yield:	80 lm/W
Light Temperature:	3000 K
Light Color:	warmwhite
Color Consistency (SDCM):	<4
Beam Angle:	36 °
Light Emission:	downward
LED-Chip Manufacturer:	Citizen
LED-Chip:	COB
Number of LED:	3
Ignition Time:	<0,5 s

Power Consumption:	30 W
Output of Driver:	DC 30 - 36V, 300mAmA
CC/CV:	CC
Input Lamp:	plug connector
Switching Cycles:	>50.000
Ambient Temperature (TA):	-20°C - 40°C

Dimensions:	265x94x80 mm
Installation Depth:	80 mm
Cut-Out Dimensions:	245x80 mm
Mounting:	Decke
Montageart:	recessed
Pivot Range pan:	360 °
Pivot Range tilt:	20 °
IP Class:	20
Housing Color	silver
Housing Material:	aluminum
Coating:	anodised
Special Feature of Housing:	Brushed Aluminium
Net Weight:	686 g

Type of Packaging:	box
Dimensions of Packaging:	275x85x120
Weight incl. Packaging:	0.784 kg
Content Master Package:	16
Dimensions of Master Package:	580x360x265 mm
Weight Master Package:	15,66 kg

Product Line:	Advance Line
Operating Hours:	>30.000 h L80/B20
Disposal Obligation:
Customs Tariff Number:	9405409990
Certifications	CE,D
Barcode:	4250557808352
ohne LED Vorschaltgerät, siehe passendes Zubehör
without power supply, refer to accessories
schwenkbar +/-20%
je LED-Modul wird ein Treiber benötigt!
for each LED-module you need a separate driver.

Technical Data Sheet (PDF)

Quadratischer oder rechteckiger LED-Einbauspot für 3 Lichtquellen mit gebürstetem Aluminiumrahmen more

Zurück

Quadratischer oder rechteckiger LED-Einbauspot für 3 Lichtquellen mit gebürstetem Aluminiumrahmen
Vorschaltgerät: nicht enthalten
Deckenausschnitt: 245x80 mm
Einbautiefe: 80 mm
Temperaturbereich: -20°C - 40°C
Lichtstrom: 2400 lm
LED-Leistung: 30 W
Leuchten-Lichtausbeute: 80 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 36°
Lichtaustritt: direkt
Maße: 265x94x80 mm
Montageart: Einbau (Decke)
Schutzart (DIN EN 60529): IP20
Außenfarbe: silver
Gehäusematerial: Aluminium
Gehäusebeschichtung: eloxiert
Nettogewicht: 686 g
Mittlere Lebensdauer (L80/B20): 30000 h
