Nava Square 200 18-CCT SELECT-1620LM
Order number: LG58290
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays

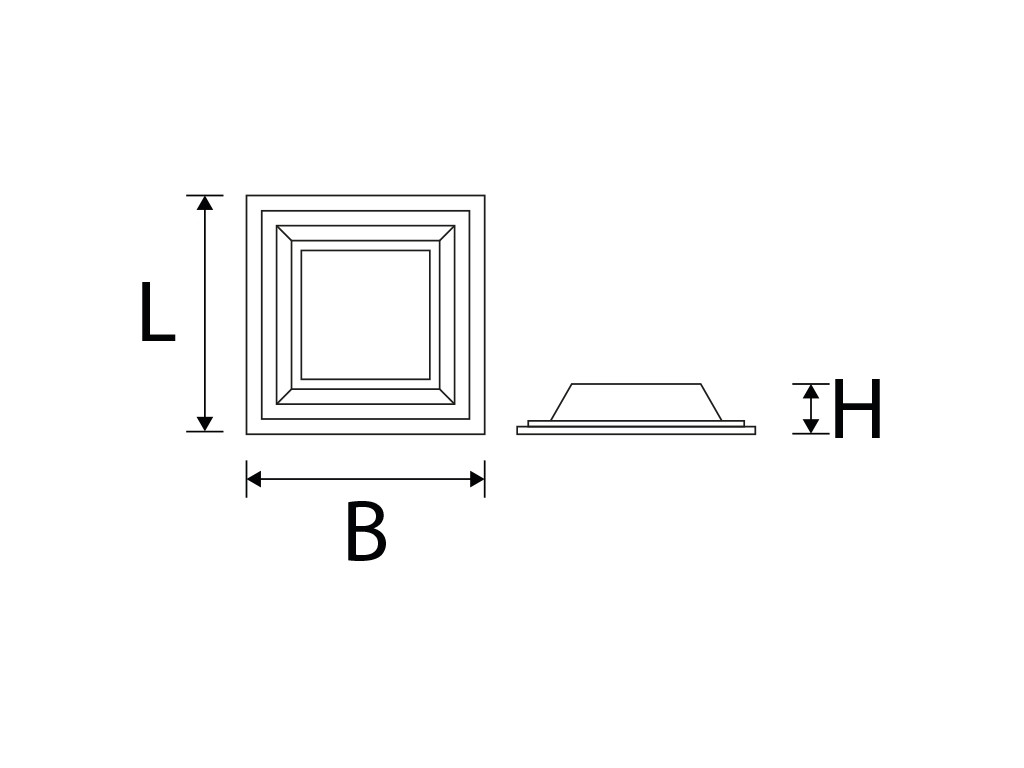

Dimensions
- Order number: : LG58290
- Luminous Flux: 1620 lm
- Power Draw: 18 W
- Light Color: CCT Select (3000,4000 K)
- Input Current: AC 220- 240V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20
- Beam Angle: 120°
- LED-Chip: San'an SMD 2835
- Housing Color: white
- Dimensions: 200x200x45 mm
- Cut-Out Dimensions: 165x165 mm
- Warranty: 3 years
recessed luminaire with illuminated glas ring Litegear® Nava LED recessed... more
Product information "Nava Square 200 18-CCT SELECT-1620LM"
recessed luminaire with illuminated glas ring
Litegear® Nava LED recessed luminaire with illuminated glass rim for installation in suspended ceilings or plasterboard walls. Easy installation thanks to snap-in spring holder. Very homogeneous light distribution and high brightness. Ideal for illuminating retail areas, entrance halls, corridors or as a complement to offices. Very nice design light with low installation depth and external driver. CCT selct: 3000K warm white, 4000K natural white.
Nava LED recessed lights are available in different sizes and shapes: round or square. Nava is the perfect replacement for recessed luminaires with halogen lamps or CFL energy saving lamps. Due to the low price, the replacement of existing luminaires by Nava models pays for itself very quickly.
Applications:
residential, office, toilet, corridors, hotel, shops
Related links to "Nava Square 200 18-CCT SELECT-1620LM"
Technical Details:
| Luminous Flux: | 1620 lm |
| LED Output: | 16 W |
| Light Yield: | 90 lm/W |
| Light Temperature: | 3000,4000 K |
| Light Color: | CCT Select |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <3 |
| Beam Angle: | 120 ° |
| Unified Glare Rating (UGR): | 24 |
| Light Emission: | downward |
| LED-Chip Manufacturer: | San'an |
| LED-Chip: | SMD 2835 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 220- 240V, 50/60Hz |
| Power Consumption: | 18 W |
| Contains Driver: |  |
| Driver Manufacturer: | Boke |
| Power Factor (PF): | >0.9 |
| Input Driver: | cable with flying leads |
| Output of Driver: | DC 26-30V, 600mA |
| CC/CV: | CC |
| Input Lamp: | plug connector |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -10°C - 40°C |
| Storage Temperature: | -10°C - 50°C |
| Dimensions: | 200x200x45 mm |
| Installation Depth: | 27 mm |
| Cut-Out Dimensions: | 165x165 mm |
| Mounting: | ceiling,wall |
| Montageart: | recessed |
| IP Class: | 20 |
| Housing Color | white |
| Housing Material: | aluminum |
| Coating: | lacquered |
| Special Feature of Housing: | Glasrand beleuchtet |
| Cover: | Glas gefrostet |
| Net Weight: | 775 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 243x70x225 |
| Weight incl. Packaging: | 0.901 kg |
| Content Master Package: | 8 |
| Dimensions of Master Package: | 320x260x460 mm |
| Weight Master Package: | 7,6 kg |
| Product Line: | ECO Line |
| Warranty | 3 years |
| Operating Hours: | >50.000 h L70/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405499090 |
| Certifications | CE,D |
| Barcode: | 4250557812359 |
| Wahl der Lichtfarbe zw. 3000/4000 Kelvin | |
| CCT select: 3000/4000 Kelvin | |
