Preview: PARAFLECTA Modul 6-827/850-570LM

Product Info (PDF)

Order number: LG10400

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

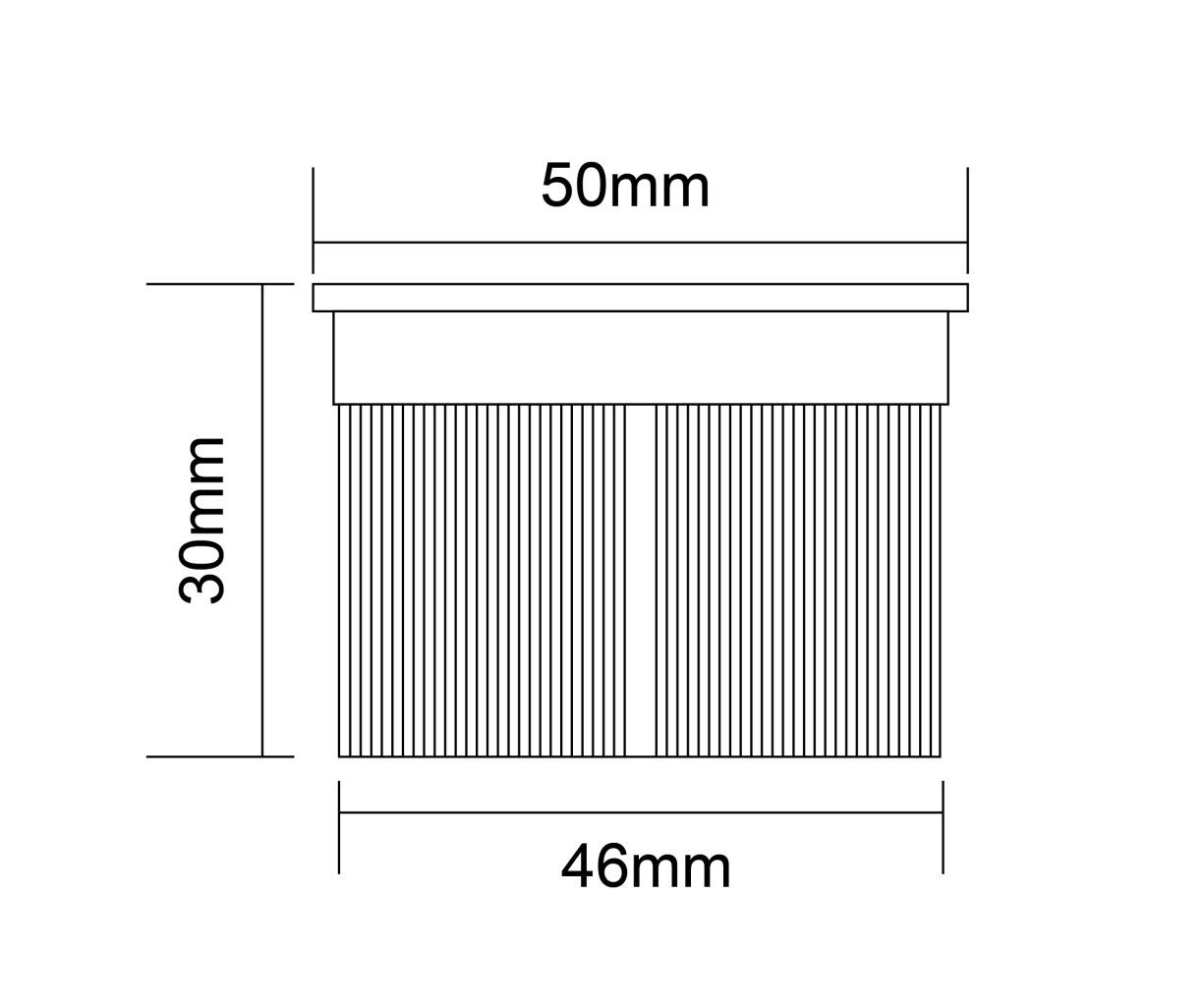

Dimensions

Menü schließen

Order number: : LG10400
Luminous Flux: 570 lm
Power Draw: Power Select (4, 6 W)
Light Color: CCT Select (2700, 3000, 4000, 5700 K)
Input Current: AC 220 - 240V, 50/60Hz
Color Rendering Index (CRI): ≥80 Ra
IP Code: 20

Beam Angle: 38°
LED-Chip: SMD2835
Housing Color: black/white
Dimensions: 50x30 mm
Warranty: 3 years

Luminous Flux

570
lm

Power Draw

6 W

Light Color

2700, 3000, 4000, 5700 K
CCT Select

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 20

Beam Angle

38°

ceiling, wall

mounting type

Light Direction

Dimensions

(ØxH) in mm
50x30

Warranty

3 years

Litegear ® universal Retrofit LED-Module suitable for recessed MR16 downlight... more

Close menu

Product information "PARAFLECTA Modul 6-827/850-570LM"

Litegear ® universal Retrofit LED-Module suitable for recessed MR16 downlight fittings

One Fit all

perfect replacement for konventional halogen MR16 GU5,3 or GU10 bulbs

high system effcency up to 100lm/W (370-570lm)
selectable output power 4/6W via switch
CCT selectable 2700, 3000, 4000, 5700 Kelvin via switch
Triac dimmable with common dimmers
compact dimensions: 50mm Dimensions: and only 30mm high for recessed ceilings with limited space
tool free, plugable terminal box for power loop 240V AC, perfect for replacing the driver
good color rendering index: CRI >80, concentrated light beams: 38°, flicker free light

Related links to "PARAFLECTA Modul 6-827/850-570LM"

Zurück

Technical Details:

Luminous Flux:	570 lm
LED Output:	5.33 W
Light Yield:	95 lm/W
Light Temperature:	2700, 3000, 4000, 5700 K
Light Color:	CCT Select
Color Rendering Index:	≥80 Ra
Color Consistency (SDCM):	<4
Beam Angle:	38 °
Light Emission:	downward
Dimmable:
Method of Dimming:	"Triac Phasenan-/abschnitt"
LED-Chip:	SMD2835
Ignition Time:	<0,5 s

Input Current:	AC 220 - 240V, 50/60Hz
Power Consumption:	Power Select (4, 6 W)
Contains Driver:
Driver Manufacturer:	Litegear
Input Driver:	terminal
CC/CV:	CC
Output Current Adjustable:
Input Lamp:	plug connector
Switching Cycles:	>50.000
Electrical Protection Class:	II
Loop-Through Cabling:
Ambient Temperature (TA):	-20°C - 45°C
Storage Temperature:	-40°C - 60°C

Dimensions:	50x30 mm
Mounting:	ceiling,wall
Montageart:	recessed
IP Class:	20
IK Code:	10
Housing Color	black/white
Housing Material:	Aluminium/plastic
Coating:	lacquered
Special Feature of Housing:	steckbare Anschlußbox
Cover:	Lens
Net Weight:	150 g

Type of Packaging:	box
Dimensions of Packaging:	100x100x85
Weight incl. Packaging:	0.174 kg
Content Master Package:	32
Dimensions of Master Package:	395x395x290 mm
Weight Master Package:	14,5 kg

Product Line:	Advance Line
Warranty	3 years
Operating Hours:	>50.000 h L80/B20
Disposal Obligation:
Customs Tariff Number:	9405119090
Certifications	CE,LM80,ERP
Barcode:	4250557822556
Passend für MR16 Downlightarmaturen
suitable for MR16 downlight fixtures
kompatibel mit den meisten Phasenan-/abschnitsdimm
campatible with most Triac dimmer
flickerfree

Technical Data Sheet (PDF)

Runder modularer LED-Einbauspot inkl. 3 Frontblenden, wählbarer Lichtfarbe und Leistungsanpassung... more

Zurück

Runder modularer LED-Einbauspot inkl. 3 Frontblenden, wählbarer Lichtfarbe und Leistungsanpassung für 65-70mm Deckenausschnitt
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -20°C - 45°C
Lichtstrom: 570 lm
LED-Leistung: Power Select (4, 6 W)
Leuchten-Lichtausbeute: 95 lm/W
Farbtemperatur: 2700, 3000, 4000, 5700 K
Lichtfarbe: CCT Select
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 38°
Lichtaustritt: direkt
Maße: 50x30 mm
Montageart: Einbau (Decke,Wand)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP20
Stoßfestigkeitsgrad (IEC 62262): IK10
Außenfarbe: black/white
Gehäusematerial: Aluminium/plastic
Gehäusebeschichtung: lackiert
Abdeckung: Linse
Nettogewicht: 150 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h
