Artea 23-830/840-2300LM CCT-/Power Select, Emergency Autotest

Product Info (PDF)

Order number: LG31242E8

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Menü schließen

Order number: : LG31242E8
Luminous Flux: 2300 lm
Power Draw: Power Select (10,15,23 W)
Light Color: CCT Select (3000,4000 K)
Input Current: AC 220 - 240V, 50/60Hz, DC 180 -240V
Color Rendering Index (CRI): ≥80 Ra
IP Code: 44

Beam Angle: 120°
LED-Chip: SMD 2835
Housing Color: white
Dimensions: 335x63 mm
Warranty: 5 years

Luminous Flux

2300
lm

Power Draw

24 W

Light Color

3000,4000 K
CCT Select

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 44

Beam Angle

120°

ceiling, wall

mounting type

Light Direction

Dimensions

(ØxH) in mm
335x63

Warranty

5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

Universal surface-mounted luminaire with battery emergency light for 8 hours ... more

Close menu

Product information "Artea 23-830/840-2300LM CCT-/Power Select, Emergency Autotest"

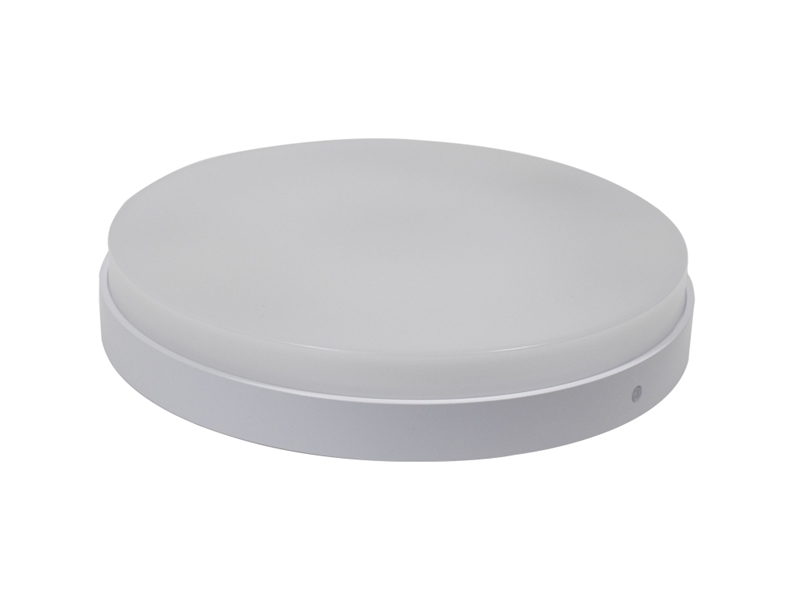

Universal surface-mounted luminaire with battery emergency light for 8 hours

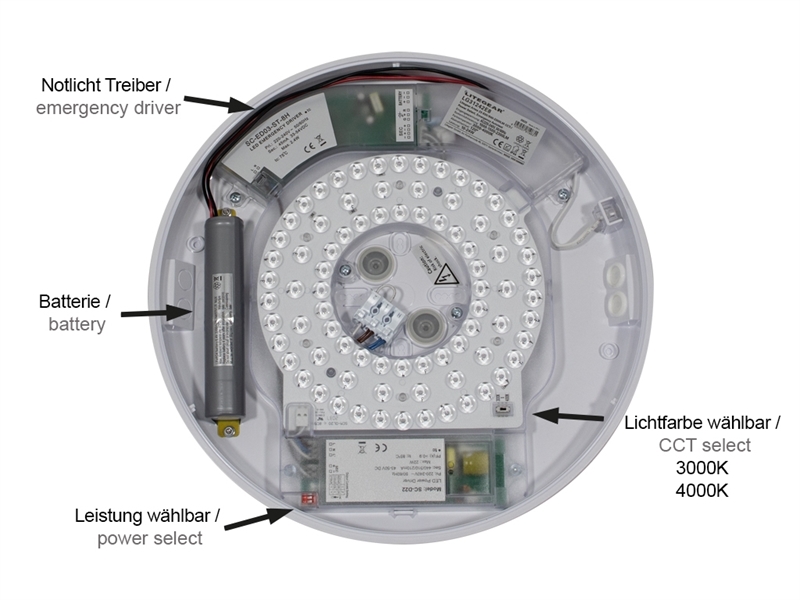

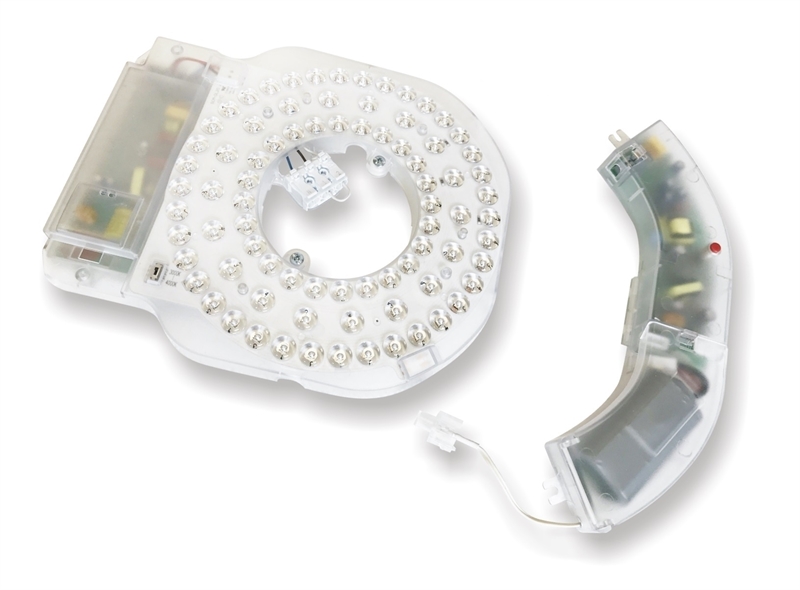

Artea is a universal wall / ceiling mounted luminaire with CCT Select 3000 / 4000K and Power Select: function output power 10-23W and luminous flux: 1000, 1500 and 2300 lumens.Artea ihas a service friendly, modular design. LED board and driver are combined on a replaceable unit. Optionally, a battery supply can be additionally connected for autonomous emergency power operation. The lluminaire has a robust, impact-resistant plastic housing which can also be used in protected outdoor areas.

Maximum 42 luminaires can be operated by a 16A fuse breaker.

Including batteries and emergency switch driver in case power supply fails. Luminous flux in battery mode: 220 Lumen
Automatic selftest: weekly funktion test and annual long duration test

Applications: staircase house, corridors, lresidential, office, sanitary areas, storage rooms, outdoor under cannopies

Optional with motion sensor.

Related links to "Artea 23-830/840-2300LM CCT-/Power Select, Emergency Autotest"

Zurück

Technical Details:

Luminous Flux:	2300 lm
LED Output:	22.5 W
Light Yield:	96 lm/W
Light Temperature:	3000,4000 K
Light Color:	CCT Select
Color Rendering Index:	≥80 Ra
Color Consistency (SDCM):	<3
Beam Angle:	120 °
Light Emission:	downward
LED-Chip:	SMD 2835
Ignition Time:	<0,5 s
Glow Wire Test 650°C/30s

Input Current:	AC 220 - 240V, 50/60Hz, DC 180 -240V
Power Consumption:	Power Select (10,15,23 W)
Contains Driver:
Power Factor (PF):	>0.9
Input Driver:	terminal
CC/CV:	CC
Input Lamp:	Terminal
Switching Cycles:	>100.000
Electrical Protection Class:	II
Compatible with Emergency Current:
Loop-Through Cabling:
Ambient Temperature (TA):	-20°C - 45°C
Storage Temperature:	-20°C - 55°C

Dimensions:	335x63 mm
Mounting:	ceiling,wall
Montageart:	surface mounted
IP Class:	44
IK Code:	10
Housing Color	white
Housing Material:	plastic
Special Feature of Housing:	modularer Aufbau
Cover:	opal
Net Weight:	1415 g
Luminaire Type:	Fluchtwegleuchtung
Testing Facility:	automatischer Selbsttest
Battery Warranty:	1
Discharge Duration:	≥8 h
Battery Type:	LiFePo4
Battery Current:	3000 mA
Battery Charge Duration:	12-16 h
Initial Charge Duration:	24 h
Charging Power Consumption:	4.5 W
Luminous Flux in Battery Mode:	220 lm
Standards for emergency luminaires:	DIN EN 60598-2-22, DIN EN 62034: 2012, Anforderung nach DIN EN 50172

Type of Packaging:	box
Dimensions of Packaging:	343x343x70
Weight incl. Packaging:	1.61 kg
Content Master Package:	10
Dimensions of Master Package:	745x360x365 mm
Weight Master Package:	13,70 kg

Product Line:	Advance Line
Warranty	5 years
Operating Hours:	>50.000 h L80/B20
Disposal Obligation:
Customs Tariff Number:	9405499090
Certifications	CE,D
Barcode:	4250557819631
Ideal für Flure/Treppenhäuser, Batterienotlicht 8h
Perfect for corridors/staircase hous, emergency 8h
Kann im Freien unter Vordächer verwendet werden!
Can be used temporarily outside under canopies
CCT Select: 3000/4000K, Power Select: 10, 15, 23W

Technical Data Sheet (PDF)

Runde LED-Wand-/Deckenanbauleuchte mit wählbarer Lichtfarbe und Leistungsanpassung more

Zurück

Runde LED-Wand-/Deckenanbauleuchte mit wählbarer Lichtfarbe und Leistungsanpassung
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 45°C
Lichtstrom: 2300 lm
LED-Leistung: Power Select (10,15,23 W)
Leuchten-Lichtausbeute: 96 lm/W
Farbtemperatur: 3000,4000 K
Lichtfarbe: CCT Select
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 120°
Lichtaustritt: direkt
Maße: 335x63 mm
Montageart: Aufbau (Decke,Wand)
Schutzart (DIN EN 60529): IP44
Stoßfestigkeitsgrad (IEC 62262): IK10
Außenfarbe: white
Gehäusematerial: plastic
Abdeckung: opal
Nettogewicht: 1415 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h
