RENOVIA 157/36-40-840-5200LM BAP, PMMA
Order number: LG59083
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
- Order number: : LG59083
- Luminous Flux: 5200 lm
- Power Draw: 40 W
- Light Color: neutralwhite (4000 K)
- Input Current: AC 200-240V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 20
- Beam Angle: 90°
- LED-Chip: SMD
- Housing Color: white
- Dimensions: 1570x360x55 mm
- Warranty: 5 years
Surface mounting renovation luminaire Renovia serves as a replacement for... more
Product information "RENOVIA 157/36-40-840-5200LM BAP, PMMA"
Surface mounting renovation luminaire
Renovia serves as a replacement for traditional surface mounted louver luminaires with fluorescent tubes. The larger housing can easily cover dirty edges outside the old luminaire housing, so no need for a complete ceiling painting.

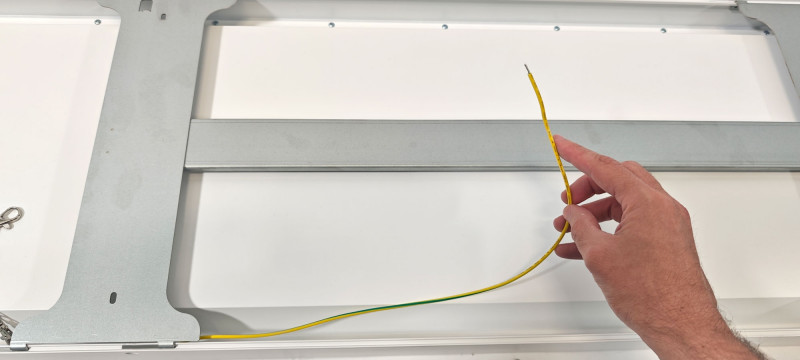

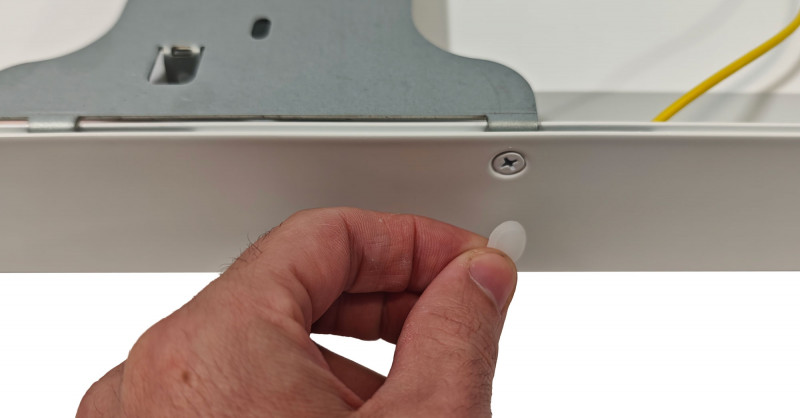

Easy installation due to separate ceiling mount plate with electronic ballast with terminal. The LED light is simply hung in the holder, easy for service! Uniform, wide light distribution with low glare due to microprismatics optical material. Optical part made of UV and temperature-resistant polymethyl methacrylate (PMMA). Eye-friendly, flicker-free LED light. Long life electronic driver > 50,000 hours.
Optionally available in dimmable version: Dali, Push-Dim, 1-10V, Radio, Zigbee
Available in 3 different sizes and power ranges.
Applications:
- Office, conference room, computer workstation BAP UGR <19 EN12464-1
- laboratory, hospital, fitness center
- hall and reception
- Sanitary facilities and corridoors
Related links to "RENOVIA 157/36-40-840-5200LM BAP, PMMA"
Technical Details:
| Luminous Flux: | 5200 lm |
| LED Output: | 39 W |
| Light Yield: | 130 lm/W |
| Light Temperature: | 4000 K |
| Light Color: | neutralwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <3 |
| Beam Angle: | 90 ° |
| Unified Glare Rating (UGR): | 19 |
| Light Emission: | downward |
| LED-Chip: | SMD |
| Number of LED: | 96 |
| Ignition Time: | <0,5 s |
| Input Current: | AC 200-240V, 50/60Hz |
| Power Consumption: | 40 W |
| Contains Driver: |  |
| Driver Manufacturer: | AGT |
| Power Factor (PF): | >0.95 |
| Input Driver: | terminal |
| Output of Driver: | DC 25-42V, 850-1050mA |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | plug connector |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | II |
| Ambient Temperature (TA): | -20°C - 45°C |
| Storage Temperature: | -20°C - 55°C |
| Dimensions: | 1570x360x55 mm |
| Mounting: | ceiling,wall |
| Montageart: | surface mounted |
| IP Class: | 20 |
| IK Code: | 03 |
| Housing Color | white |
| Housing Color (RAL Code): | similar 9016 |
| Housing Material: | aluminum |
| Coating: | powder-coated |
| Special Feature of Housing: | zweiget. Anbaugehäuse |
| Cover: | Mikroprismatisch PMMA |
| Net Weight: | 4669 g |
| Type of Packaging: | box |
| Weight incl. Packaging: | 6.62 kg |
| Content Master Package: | 2 |
| Dimensions of Master Package: | 1635x220x425 mm |
| Weight Master Package: | 14,73 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L80/B10 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405119090 |
| Certifications | CE,D |
| Barcode: | 4250557818764 |
| Renovierungsleuchte mit größeren Abmessungen | |
| Renovation light with bigger dimensions | |
| PMMA Lightguideplate, anti yellow | |
| Bildschirmarbeitsplatztauglich DIN EN12464-1 | |
| Power Select: 36-40W/ 850, 950, 1050mA | |
