RETROVA SELECT 600 12/20-CCT-Select-1500-2600LM
Order number: LG30756
Prices are only visible after login.
Availability: Ready to ship today, Delivery time appr. 1-3 workdays
Dimensions
- Order number: : LG30756
- Luminous Flux: 2600 lm
- Power Draw: Power Select (12, 14, 17, 20 W)
- Light Color: CCT Select (3000,4000,5000 K)
- Input Current: AC 198 - 264V, 50/60Hz, DC 176 - 276V
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 66
- Beam Angle: 120°
- LED-Chip: Osram Opto Semiconductors SMD 2835
- Housing Color: lichtgrey
- Dimensions: 590x96x74 mm
- Warranty: 5 years
LED triproof light Retrova Select by Litegear® is the perfect alternative... more
Product information "RETROVA SELECT 600 12/20-CCT-Select-1500-2600LM"
LED triproof light
Retrova Select by Litegear® is the perfect alternative to conventional moisture-proof fluorescent tube luminaires. Simply dismantle the old luminaire and replace it with a almost maintenance-free Retrova LED luminaire. An expensive retrofitting with LED tubes and necessary rewiring of luminaires with electronic balasts is no longer necessary. For almost the same price you get a completely new luminaire replacement with long-lasting LED technology and higher efficiency. Fast amortization with up to 57% electricity savings. Retrova can be mounted as a wall or ceiling light or suspended by means of optional steel cables. Retrova is very robust with IP66 ingress protection and IK08 impact class protection.
The Select Version has additional CCT Select function: 4000, 5000 or 6000 Kelvin plus selectable output power: 12, 15, 17 up to 20 Watt.
Applications:
warehouse, seller, storage rooms, outdoor, cold storage, car service, factory, workshop
Advantages:
Long life time due to Osram Optifit Driver with select able output current and SMD LEDs.

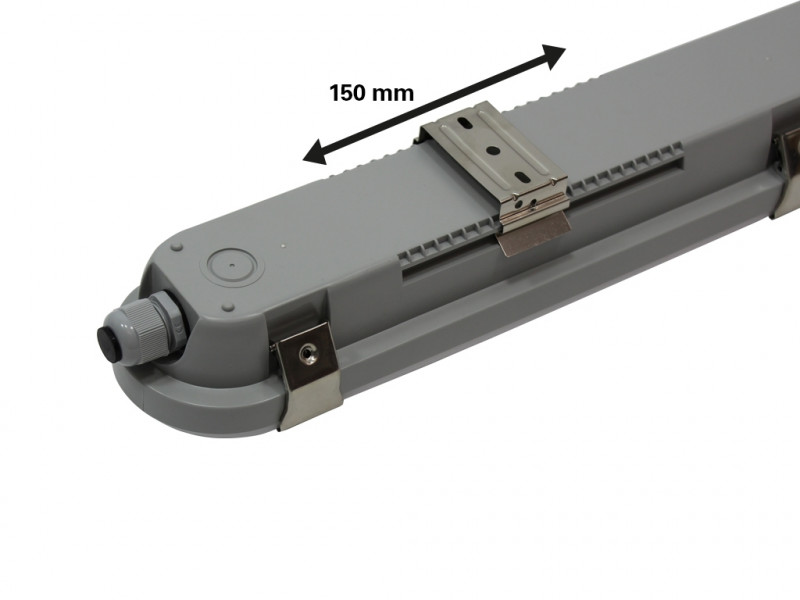

flexible installation brackets and stainless steel clip lockers.

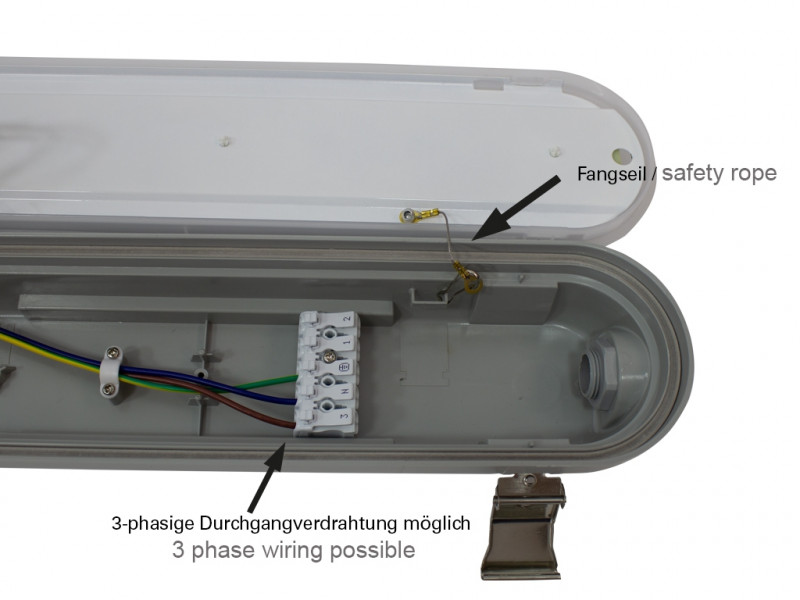

easy to change light carrier board with electrical terminal with in/out/trough link function
Many precut cable gand positions from both sides and backside.
Low surface temperature <80°C Mark: D
Related links to "RETROVA SELECT 600 12/20-CCT-Select-1500-2600LM"
Technical Details:
| Luminous Flux: | 2600 lm |
| LED Output: | 19 W |
| Light Yield: | 130 lm/W |
| Light Temperature: | 3000,4000,5000 K |
| Light Color: | CCT Select |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <3 |
| Beam Angle: | 120 ° |
| Unified Glare Rating (UGR): | 24 |
| Light Emission: | downward |
| LED-Chip Manufacturer: | Osram Opto Semiconductors |
| LED-Chip: | SMD 2835 |
| Ignition Time: | <0,5 s |
| Glow Wire Test 650°C/30s |  |
| Input Current: | AC 198 - 264V, 50/60Hz, DC 176 - 276V |
| Power Consumption: | Power Select (12, 14, 17, 20 W) |
| Contains Driver: | |
| Driver Manufacturer: | Osram |
| Power Factor (PF): | >0.95 |
| Input Driver: | terminal |
| CC/CV: | CC |
| Output Current Adjustable: | |
| Input Lamp: | Terminal |
| Switching Cycles: | >100.000 |
| Electrical Protection Class: | I |
| Compatible with Emergency Current: | |
| Ambient Temperature (TA): | -20°C - 45°C |
| Storage Temperature: | -20°C - 55°C |
| Dimensions: | 590x96x74 mm |
| Mounting: | ceiling,wall |
| Montageart: | surface mounted |
| IP Class: | 66 |
| IK Code: | 08 |
| Housing Color | lichtgrey |
| Housing Material: | ABS |
| Special Feature of Housing: | schlagzäh |
| Cover: | prismatic |
| Net Weight: | 903 g |
| Dimensions of Packaging: | 620x100x82 |
| Weight incl. Packaging: | 0.999 kg |
| Content Master Package: | 20 |
| Dimensions of Master Package: | 630x430x220 mm |
| Weight Master Package: | 21,28 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >50.000 h L80/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405114090 |
| Certifications | CE,D |
| Barcode: | 4250557823812 |
| Osram LED Treiber mit einstellbarem Ausgangsstrom: | |
| Leistung einstellbar: 12,14,17,20W max. 132lm/W | |
| EVG: ENEC-10/VDE/EMC/EL/CE; geeignet für Notstrom | |
| Anzahl pro Automat: 10A: 36, 16A: 50 Stück | |
| CCT Select: 3000K, 4000K, 5000K by switch | |
LED-Feuchtraumwannenleuchte mit Edelstahlklammern als optischer Ersatz zu konventionellen... more
LED-Feuchtraumwannenleuchte mit Edelstahlklammern als optischer Ersatz zu konventionellen Wannenleuchten mit Leuchtstoffröhre
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 45°C
Lichtstrom: 2600 lm
LED-Leistung: Power Select (12, 14, 17, 20 W)
Leuchten-Lichtausbeute: 130 lm/W
Farbtemperatur: 3000,4000,5000 K
Lichtfarbe: CCT Select
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 120°
UGR: 24
Lichtaustritt: direkt
Maße: 590x96x74 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP66
Stoßfestigkeitsgrad (IEC 62262): IK08
Außenfarbe: lichtgrey
Gehäusematerial: ABS
Abdeckung: prismatisch
Nettogewicht: 903 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h
Vorschaltgerät: LED-Treiber
Temperaturbereich: -20°C - 45°C
Lichtstrom: 2600 lm
LED-Leistung: Power Select (12, 14, 17, 20 W)
Leuchten-Lichtausbeute: 130 lm/W
Farbtemperatur: 3000,4000,5000 K
Lichtfarbe: CCT Select
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <3
Abstrahlwinkel: 120°
UGR: 24
Lichtaustritt: direkt
Maße: 590x96x74 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP66
Stoßfestigkeitsgrad (IEC 62262): IK08
Außenfarbe: lichtgrey
Gehäusematerial: ABS
Abdeckung: prismatisch
Nettogewicht: 903 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h
