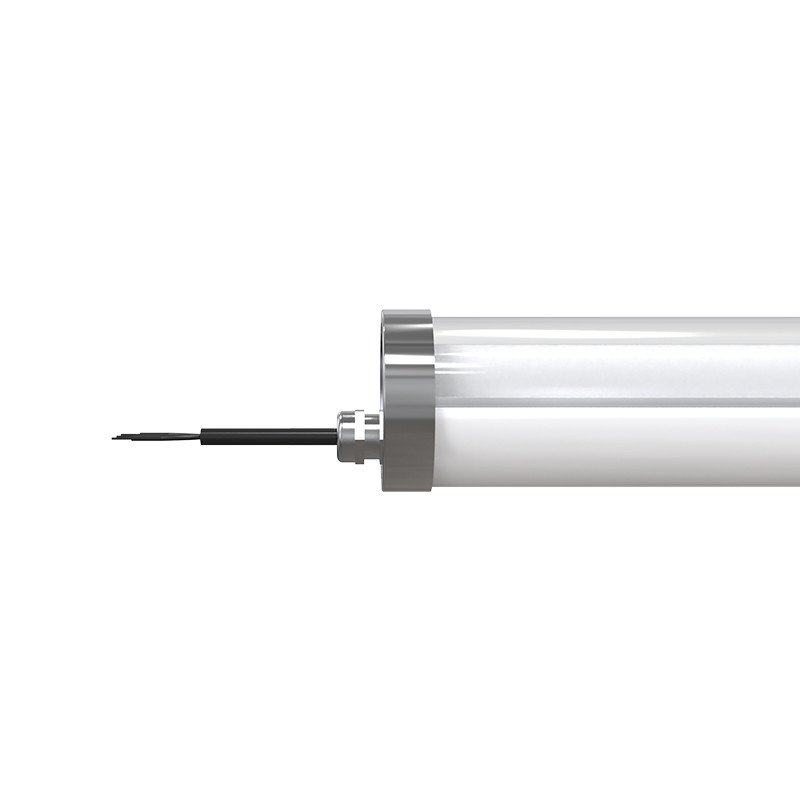

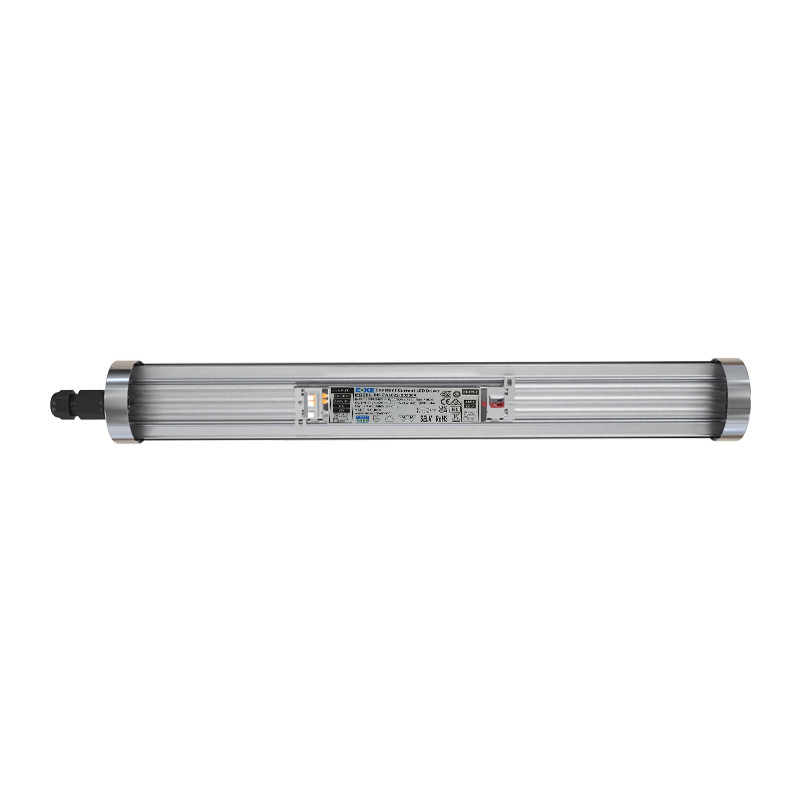

Cappila POULTRY 1150 30-RED-840-3900lm internal wire through terminals
Order number: LG30820
Prices are only visible after login.
Availability: Only on Request. Estimated delivery time more than 8 weeks.
Dimensions
- Order number: : LG30820
- Luminous Flux: 3900 lm
- Power Draw: 30 W
- Light Color: neutralwhite (4000 + 625nm red K)
- Input Current: AC 200 - 240V, 50/60Hz
- Color Rendering Index (CRI): ≥80 Ra
- IP Code: 67
- Beam Angle: 120°
- LED-Chip: Hongli SMD 2835
- Housing Color: white/silver

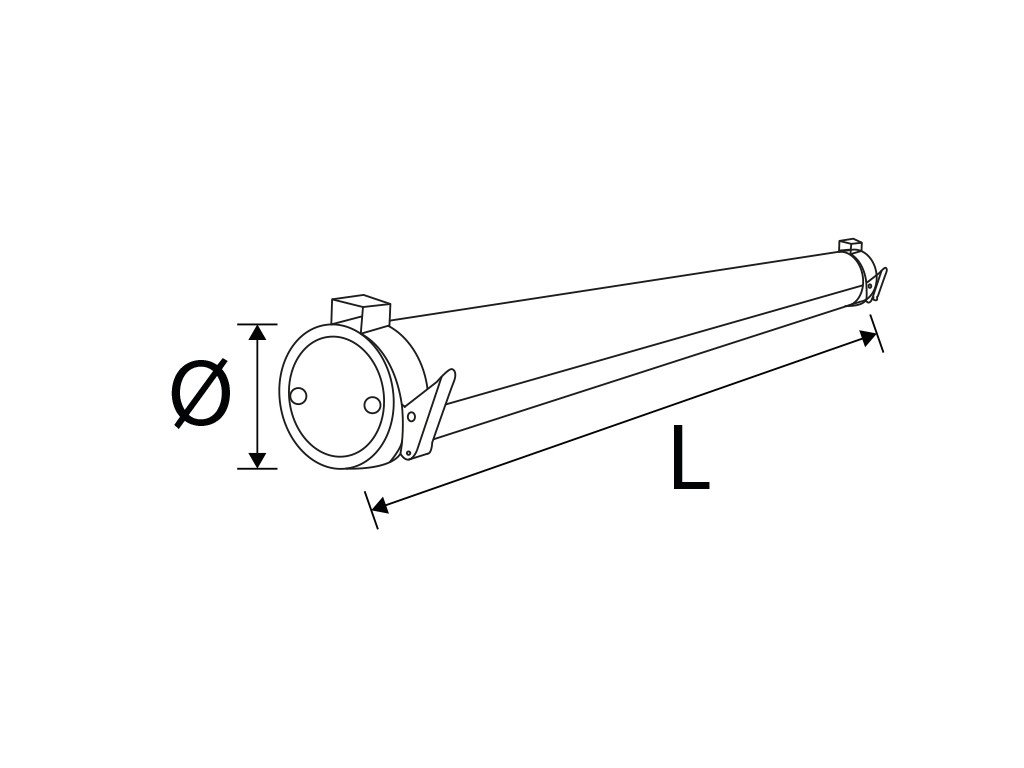

- Dimensions: 75x1152 mm
- Warranty: 5 years
Tough Industrial tubular luminaire Litegear® Cappila Poultry is a special, robust... more
Product information "Cappila POULTRY 1150 30-RED-840-3900lm internal wire through terminals"
Tough Industrial tubular luminaire
Litegear® Cappila Poultry is a special, robust damp and waterproof LED fixture for growing poultry. Cappila is available in different lengths and versions.
This special version contains 2 different LED colours: red 625nm + 4000 Kelvin natural white. With these 2 light colors you can simulate the circadian daylight rythem which is important for chickens and other bilrds to calm down and fall a sleep. One common 0-10V control input can adjust the CCT and the dimming. WE also offer a version with separate dimming per colour and channel.
The body is made from strong polycarbonat (PC). All electric components are mounted in the plastic tube and well protected. For easy installtion 2 stainless steel brackets are included. Steel ropes for hanging can be bought separately as an accessory. Cappila is developed for parking lots, food factories, industrial sloughtery, warehouse or to be used in truck service area. You can find more details in our extra Litegear Cappila brochure. This waterproof luminaire is equipped with long lasting and efficient LED technology to reduce cost for electricity and maintenance to a minimum. Long LED lifespan and almost no maintenance costs. Many benefits for an afforable luminaire that can easily convince customers to go for this innovative Litegear® LED series.
Version with internal 5 wire through link and electrical terminals on both sides.
Applications: poultry farming: chicken, goose, turkey, duck....
Related links to "Cappila POULTRY 1150 30-RED-840-3900lm internal wire through terminals"
Technical Details:
| Luminous Flux: | 3900 lm |
| LED Output: | 26 W |
| Light Yield: | 130 lm/W |
| Light Temperature: | 4000 + 625nm red K |
| Light Color: | neutralwhite |
| Color Rendering Index: | ≥80 Ra |
| Color Consistency (SDCM): | <3 |
| Beam Angle: | 120 ° |
| Unified Glare Rating (UGR): | 30 |
| Light Emission: | downward |
| Dimmable: |  |
| Method of Dimming: | 0-10V,1-10V |
| LED-Chip Manufacturer: | Hongli |
| LED-Chip: | SMD 2835 |
| Number of LED: | 216 |
| Ignition Time: | <1 s |
| Glow Wire Test 650°C/30s | |
| Input Current: | AC 200 - 240V, 50/60Hz |
| Power Consumption: | 30 W |
| Contains Driver: | |
| Driver Manufacturer: | AIDimming |
| Power Factor (PF): | >0.97 |
| Input Driver: | terminal |
| Output of Driver: | DC 9-42V, 300-750mA |
| CC/CV: | CC |
| Input Lamp: | Terminal |
| Switching Cycles: | >200.000 |
| Electrical Protection Class: | I |
| Ambient Temperature (TA): | -20°C - 40°C |
| Storage Temperature: | -20°C - 60°C |
| Dimensions: | 75x1152 mm |
| Mounting: | ceiling,wall |
| Montageart: | surface mounted |
| IP Class: | 67 |
| IK Code: | 10 |
| Housing Color | white/silver |
| Housing Material: | Polycarbonat |
| Special Feature of Housing: | Tube |
| Cover: | opal |
| Net Weight: | 2000 g |
| Type of Packaging: | box |
| Dimensions of Packaging: | 1310x80x80 |
| Weight incl. Packaging: | 2.3 kg |
| Content Master Package: | 6 |
| Dimensions of Master Package: | 1330x260x180 mm |
| Weight Master Package: | 14 kg |
| Product Line: | Advance Line |
| Warranty | 5 years |
| Operating Hours: | >54.000 h L80/B20 |
| Disposal Obligation: | |
| Customs Tariff Number: | 9405114090 |
| Certifications | CE,LM80,D |
| Barcode: | 4250557825298 |
| Rohrleuchte | |
| Tube Light | |
| Edelstahlendkappen | |
| Durchgangsverdrahtung | |
| beidseitige Terminalklemmen | |
