Product Info (PDF)

Order number: LG14468

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Menü schließen

Order number: : LG14468
Luminous Flux: 3000 lm
Power Draw: 30 W
Light Color: warmwhite (3000 K)
Input Current: AC 220 - 240V, 50/60Hz
Color Rendering Index (CRI): ≥90 Ra
IP Code: 20

Beam Angle: 36°
LED-Chip: Bridgelux COB
Housing Color: black
Dimensions: 208x85x184 mm
Warranty: 3 years

Luminous Flux

3000
lm

Power Draw

30 W

Light Color

3000 K
warmwhite

Color Rendering Index (CRI)

CRI
>90 Ra

IP Code

IP 20

Beam Angle

36°

ceiling, wall

mounting type

Dimensions

(LxBxH) in mm
208x85x184

Warranty

3 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

LED Tracklight for 3-phase track Lareda is a very elegant and timeless... more

Close menu

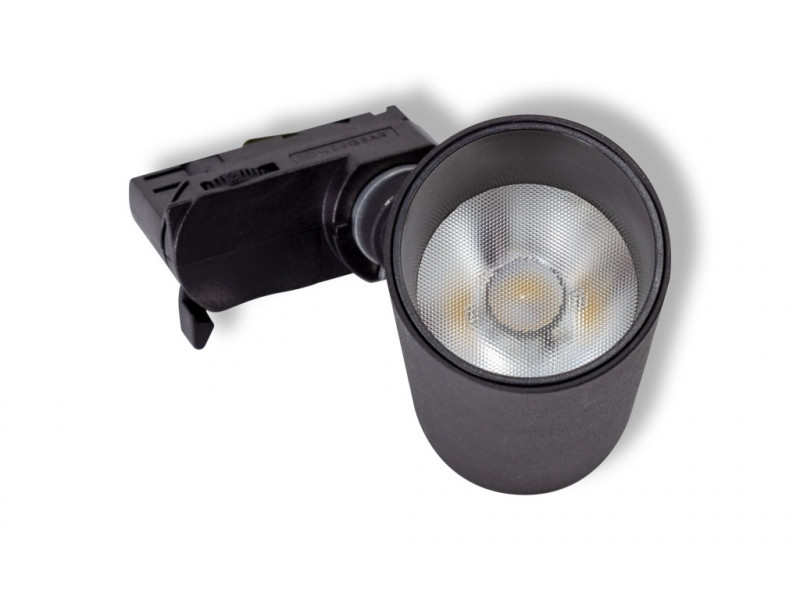

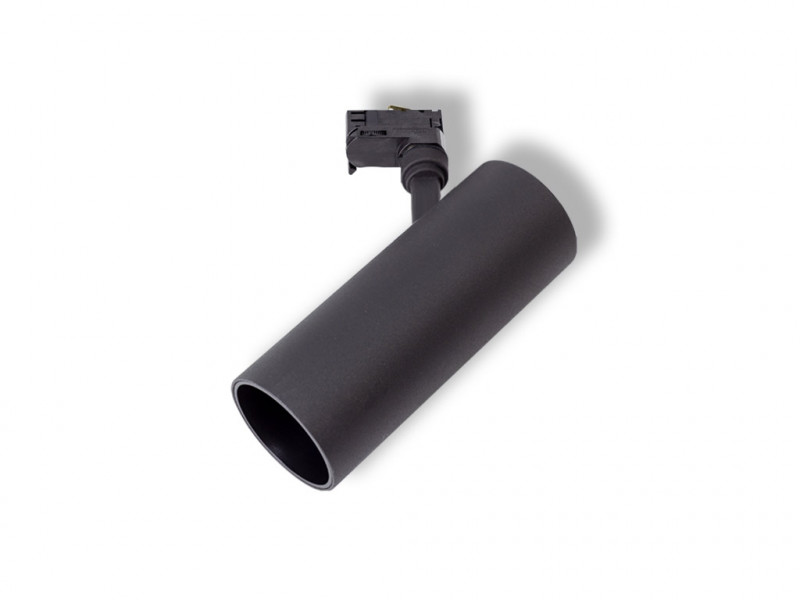

Product information "Lareda MKII 30-930-3000LM BL"

LED Tracklight for 3-phase track

Lareda is a very elegant and timeless spotlight for single-phase track systems.

Lareda has a perfect glare limitation and a directional beam angle of 36° using a removable lens.

High-quality aluminum housing for better heat dissipation. Integrated LED driver with up to 30,000 hours lifetime.

Large swivel range for perfect alignment.

Other lenses with smaller beamangle are available as an option. 15°, 24°

Related links to "Lareda MKII 30-930-3000LM BL"

Zurück

Technical Details:

Luminous Flux:	3000 lm
LED Output:	28 W
Light Yield:	100 lm/W
Light Temperature:	3000 K
Light Color:	warmwhite
Color Rendering Index:	≥90 Ra
Color Consistency (SDCM):	<4
Beam Angle:	36 °
Swappable Reflector:
Unified Glare Rating (UGR):	17
Light Emission:	sideward
LED-Chip Manufacturer:	Bridgelux
LED-Chip:	COB
Number of LED:	1
Ignition Time:	<0,5 s

Input Current:	AC 220 - 240V, 50/60Hz
Power Consumption:	30 W
Contains Driver:
Driver Manufacturer:	Osram
Power Factor (PF):	>0.98
Input Driver:	lighting track
Output of Driver:	DC 30-42V, 500-700mA
CC/CV:	CC
Output Current Adjustable:
Input Lamp:	Power rail
Switching Cycles:	>50.000
Electrical Protection Class:	II
Ambient Temperature (TA):	0°C - 35°C

Dimensions:	208x85x184 mm
Mounting:	ceiling,wall
Montageart:	surface mounted
Pivot Range pan:	350 °
Pivot Range tilt:	90 °
IP Class:	20
Housing Color	black
Housing Material:	aluminum
Coating:	powder-coated
Special Feature of Housing:	3-Phase Track Adapter
Cover:	Lens
Net Weight:	0.978 g

Type of Packaging:	box
Dimensions of Packaging:	9090295
Weight incl. Packaging:	1.104 kg
Content Master Package:	12
Dimensions of Master Package:	385x290x320 mm
Weight Master Package:	12,74 kg

Product Line:	Advance Line
Warranty	3 years
Operating Hours:	>30.000 h L80/B20
Disposal Obligation:
Customs Tariff Number:	94054239
Certifications	CE,LM80,D
Barcode:	4250557812311
perfekte Blendungsbegrenzung
für Wohnraum, Museum, Shop oder Deko
max. 25 Spots auf einer 16A Sicherung
Treiber einstellbar.: 500, 600, 650, 700mA 21-30W

Technical Data Sheet (PDF)

Zurück

Eleganter Stromschienenstrahler für 3-Phasenstromschiene mit einem Farbwiedergabeindex >90Ra more

Zurück

Eleganter Stromschienenstrahler für 3-Phasenstromschiene mit einem Farbwiedergabeindex >90Ra
Vorschaltgerät: LED-Treiber
Temperaturbereich: 0°C - 35°C
Lichtstrom: 3000 lm
LED-Leistung: 30 W
Leuchten-Lichtausbeute: 100 lm/W
Farbtemperatur: 3000 K
Lichtfarbe: warmwhite
Farbwiedergabeindex (Ra): >90
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 36°
UGR: 17
Bildschirmgerecht gemäß EN12464-1 durch begrenzte Leuchtdichten L ≤ 3000 cd/m² für Ausstrahlungswinkel oberhalb 65° rundum
Lichtaustritt: direkt
Maße: 208x85x184 mm
Montageart: Aufbau (Decke,Wand)
Schutzart (DIN EN 60529): IP20
Außenfarbe: black
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: Linse
Nettogewicht: 0.978 g
Garantie: 3 Jahre
Mittlere Lebensdauer (L80/B20): 30000 h
