Preview: SOLVELA 40-740-4800LM IP65 IR remote

Product Info (PDF)

Order number: LG11965

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Menü schließen

Order number: : LG11965
Luminous Flux: 4800 lm
Power Draw: 40 W
Light Color: neutralwhite (4000 K)
Input Current: DC 11,1V, 10AHmA
Color Rendering Index (CRI): ≥80 Ra
IP Code: 65

Beam Angle: 140x70°
LED-Chip: SMD 2835
Housing Color: black
Dimensions: 621,6x289,7x73,6 mm
Warranty: 2 years

Luminous Flux

4800
lm

Power Draw

40 W

Light Color

4000 K
neutralwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 65

Beam Angle

140x70°

mounting type

Light Direction

Dimensions

(LxBxH) in mm
621,6x289,7x73,6

Warranty

2 years

SOLAR LED street light Self-sufficient LED street light with... more

Close menu

Product information "SOLVELA 40-740-4800LM IP65 IR remote"

SOLAR LED street light

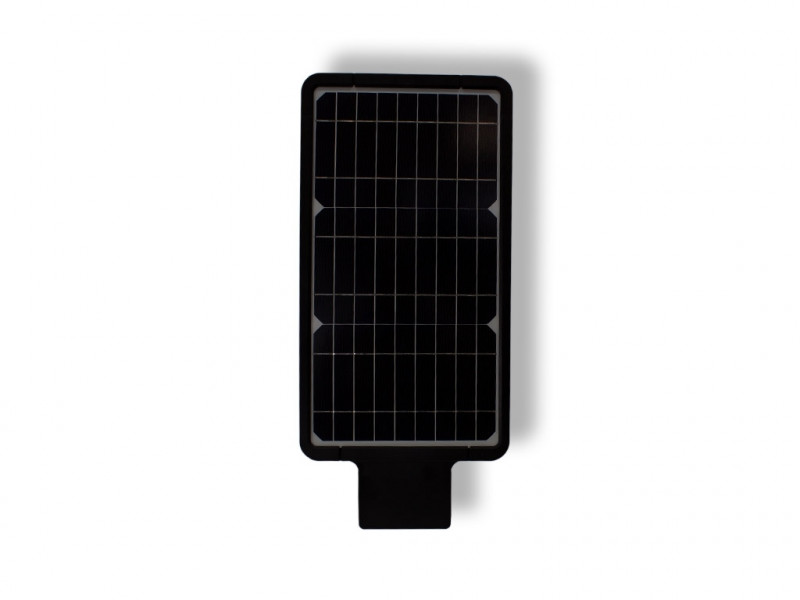

Self-sufficient LED street light with integrated solar panel, asymmetrically emitting LED modules and PIR motion sensor with daylight harvesting.
Ideal for parking areas and roads without power

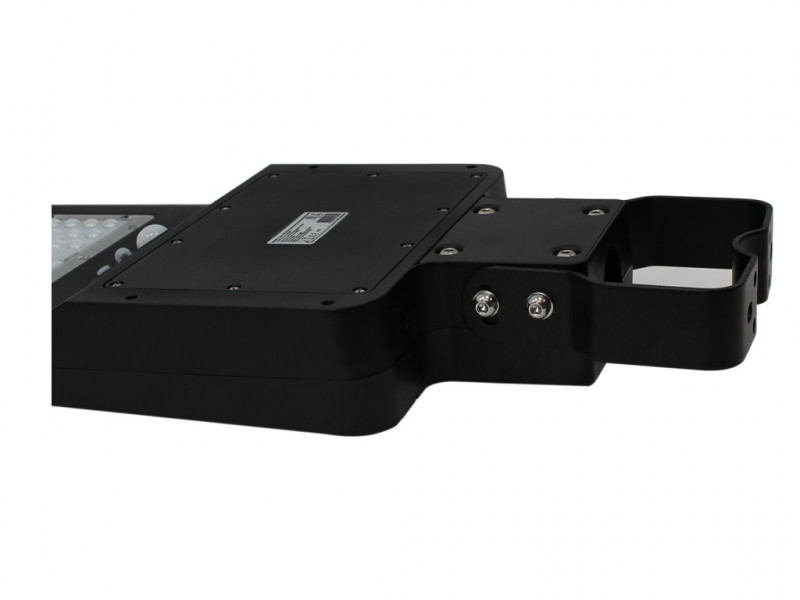

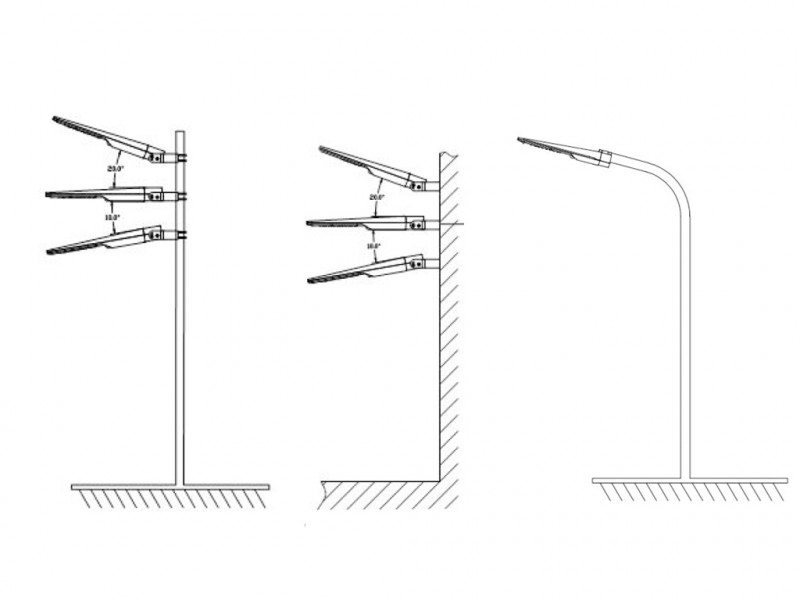

Mast attachment for 50mm tube with 3-7m mast height or alternatively with mounting bracket for mounting on facades with -10 to + 20 ° vertically adjustment.
High light output up to 120 lumens / watt
2 modes of operation selectable by remote control: mode A: continuous operation with 50% brightness, after 5 operating hours automatic change to motion detection with 100% brightness and 30% lightlevel for 20 seconds then off,
Mode B: Motion detection in the radius of <12m with 100% brightness and 30% caster for 20 seconds then off
Maximum battery standby time: 3-4 nights depending on battery status and mode
Modes and settings can be changed by remote control.

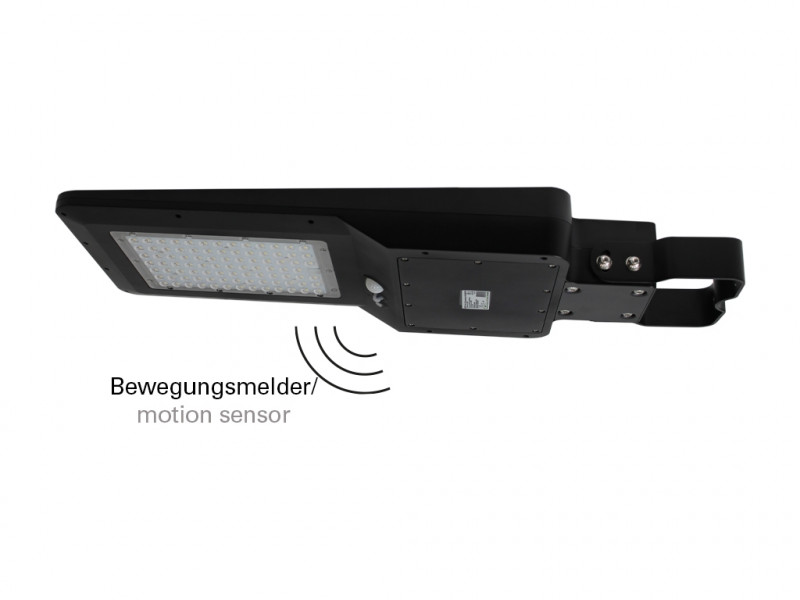

Motion sensor with 120 ° detection at <12m
UV stable, flame retardant plastic

Related links to "SOLVELA 40-740-4800LM IP65 IR remote"

Zurück

Technical Details:

Luminous Flux:	4800 lm
LED Output:	37 W
Light Yield:	120 lm/W
Light Temperature:	4000 K
Light Color:	neutralwhite
Color Rendering Index:	≥80 Ra
Color Consistency (SDCM):	<6
Beam Angle:	140x70 °
Light Emission:	downward
LED-Chip:	SMD 2835
Number of LED:	90
Ignition Time:	<1 s
Glow Wire Test 650°C/30s

Input Current:	DC 11,1V, 10AHmA
Power Consumption:	40 W
CC/CV:	CV
Input Lamp:	terminal
Switching Cycles:	>50.000
Ambient Temperature (TA):	-10°C - 40°C
Storage Temperature:	-10°C - 50°C

Dimensions:	621,6x289,7x73,6 mm
Montageart:	surface mounted
IP Class:	65
Housing Color	black
Housing Material:	ABS+PC, Alu Anti UV
Special Feature of Housing:	Sensor/Solarpanel
Cover:	Lens
Net Weight:	4980 g

Type of Packaging:	box
Dimensions of Packaging:	730x330x100
Weight incl. Packaging:	5.32 kg
Content Master Package:	4
Dimensions of Master Package:	750x395x350 mm
Weight Master Package:	22,5 kg

Product Line:	ECO Line
Warranty	2 years
Operating Hours:	>35.000 h L80/B20
Disposal Obligation:
Customs Tariff Number:	9405413990
Certifications	CE
Barcode:	4250557818306
Mastaufnahme Ø: 50 mm Solarpanel: (19W/15V)
adjustable LED-Module, charging time 6h/day
integrierter Bewegungssensor mit Dimmung/Standby
integrated motion sensor 120° <12m

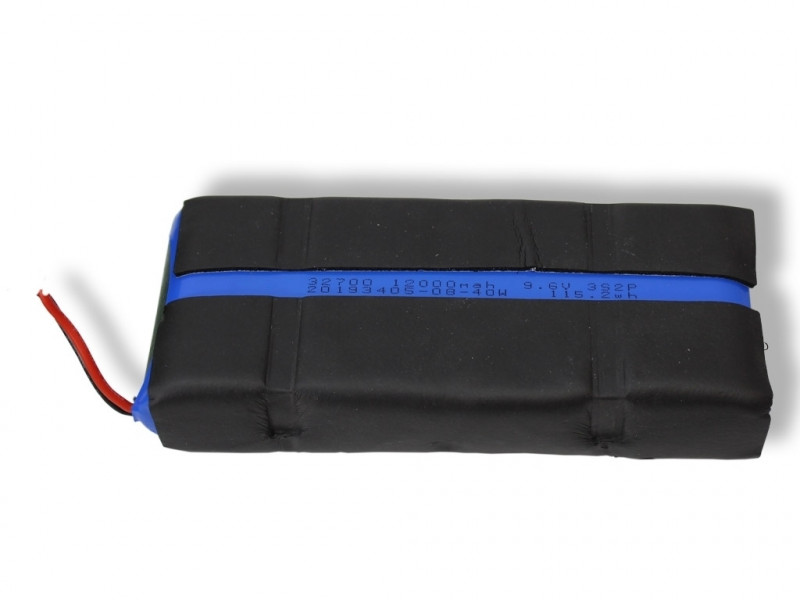

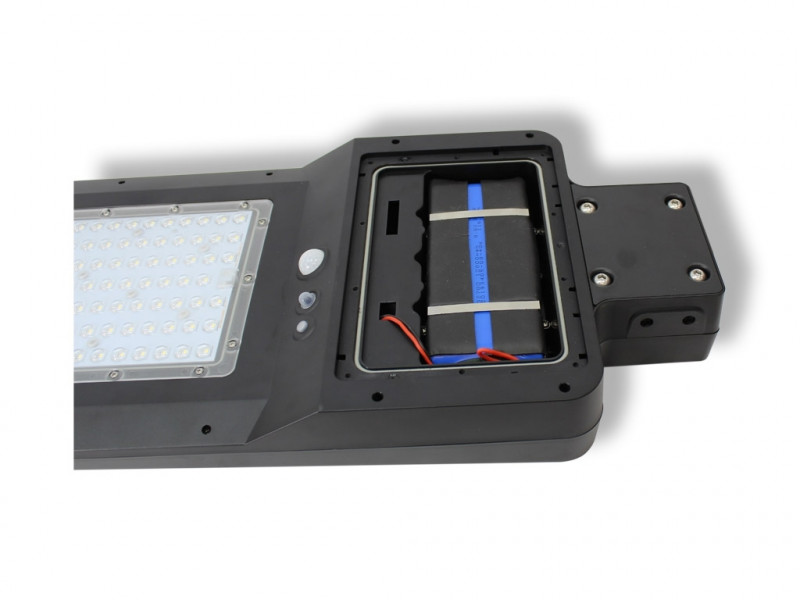

LIFEPO4 battery: 32650/12,8V/6000mAh replaceable

Technical Data Sheet (PDF)

Zurück

Solar LED-Straßenleuchte mit integriertem Solarpanel, PIR-Bewegungssensor und Helligkeitsmessung more

Zurück

Solar LED-Straßenleuchte mit integriertem Solarpanel, PIR-Bewegungssensor und Helligkeitsmessung
Vorschaltgerät: nicht enthalten
Temperaturbereich: -10°C - 40°C
Lichtstrom: 4800 lm
LED-Leistung: 40 W
Leuchten-Lichtausbeute: 120 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <6
Abstrahlwinkel: 140x70°
Lichtaustritt: direkt
Maße: 621,6x289,7x73,6 mm
Schutzart (DIN EN 60529): IP65
Außenfarbe: black
Gehäusematerial: ABS+PC, Alu Anti UV
Abdeckung: Linse
Nettogewicht: 4980 g
Garantie: 2 Jahre
Mittlere Lebensdauer (L80/B20): 35000 h

Zurück
