Preview: Wega Circle 1000-100-840-10000LM DALI DIM

Wega Circle 1000-100-840-10000LM DALI DIM

Product Info (PDF)

Order number: LG58261DABK

Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Menü schließen

Order number: : LG58261DABK
Luminous Flux: 10000 lm
Power Draw: 100 W
Light Color: neutralwhite (4000 K)
Input Current: AC 220 - 240V, 50/60Hz
Color Rendering Index (CRI): ≥80 Ra
IP Code: 20

Beam Angle: 110°
LED-Chip: SMD 2835
Housing Color: black
Dimensions: 1000x82 mm
Warranty: 5 years

Luminous Flux

10000
lm

Power Draw

100 W

Light Color

4000 K
neutralwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 20

Beam Angle

110°

ceiling, wall

mounting type

Light Direction

Dimensions

(ØxH) in mm
1000x82

Warranty

5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

Round surface-mounted luminaire Litegear® WEGA CIRCLE is a round... more

Close menu

Product information "Wega Circle 1000-100-840-10000LM DALI DIM"

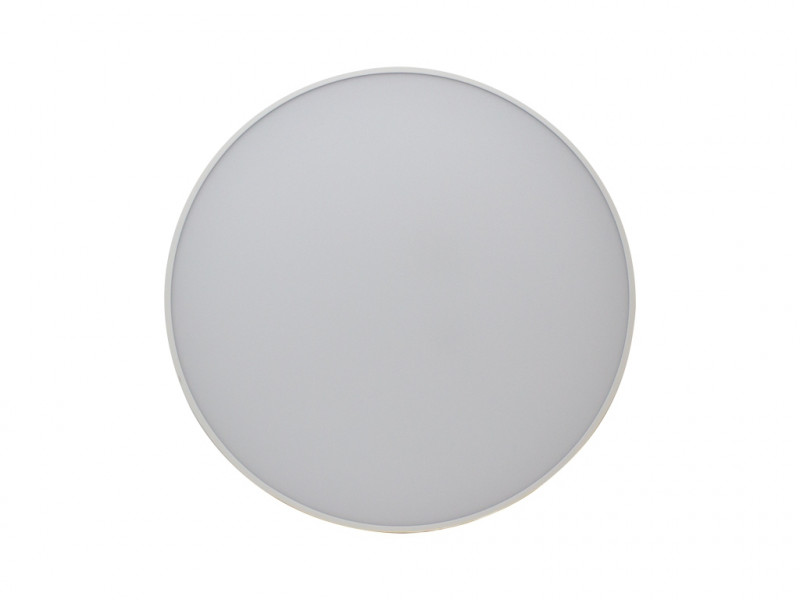

Round surface-mounted luminaire

Litegear® WEGA CIRCLE is a round surface-mounted luminaire for ceiling or wall mounting.

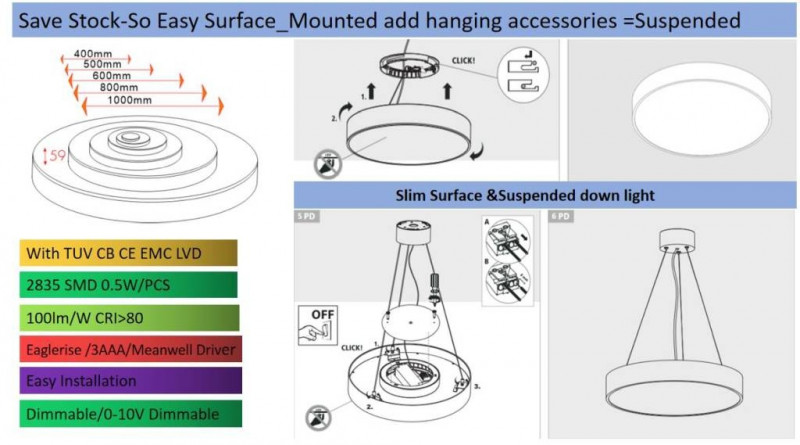

Easy assembly thanks to mounting bracket with twist lock and safety ropes
high quality aluminum housing
Available in different sizes and housing colors: black, white
Light color: 4000K or 3000K
uniform light distribution and illumination
Can also be used as a pendant lamp with the optional steel cable set.
Dali dimming

Applications:

Offices, sales areas, reception halls, schools, exhibitions, living spaces

Related links to "Wega Circle 1000-100-840-10000LM DALI DIM"

Zurück

Technical Details:

Luminous Flux:	10000 lm
LED Output:	95 W
Light Yield:	100 lm/W
Light Temperature:	4000 K
Light Color:	neutralwhite
Color Rendering Index:	≥80 Ra
Color Consistency (SDCM):	<4
Beam Angle:	110 °
Unified Glare Rating (UGR):	21
Light Emission:	downward
Dimmable:
Method of Dimming:	DALI
LED-Chip:	SMD 2835
Ignition Time:	<0,5 s

Input Current:	AC 220 - 240V, 50/60Hz
Power Consumption:	100 W
Contains Driver:
Driver Manufacturer:	Inventronics
Power Factor (PF):	>0.9
Input Driver:	terminal
CC/CV:	CC
Input Lamp:	Terminal
Switching Cycles:	>100.000
Electrical Protection Class:	I
Compatible with Emergency Current:
Ambient Temperature (TA):	-20°C - 45°C
Storage Temperature:	-20°C - 55°C

Dimensions:	1000x82 mm
Mounting:	ceiling,wall
Montageart:	surface mounted
IP Class:	20
IK Code:	03
Housing Color	black
Housing Material:	aluminum
Coating:	powder-coated
Cover:	prismatic
Net Weight:	15470 g

Type of Packaging:	box
Weight incl. Packaging:	18.22 kg
Content Master Package:	1
Dimensions of Master Package:	1060x120x1060 mm
Weight Master Package:	18,22 kg

Product Line:	Advance Line
Warranty	5 years
Operating Hours:	>50.000 h L80/B20
Disposal Obligation:
Customs Tariff Number:	9405423990
Certifications	CE,SELV
Barcode:	4250557823188
mit opt. Zubehör als Pendelleuchte zu verwenden

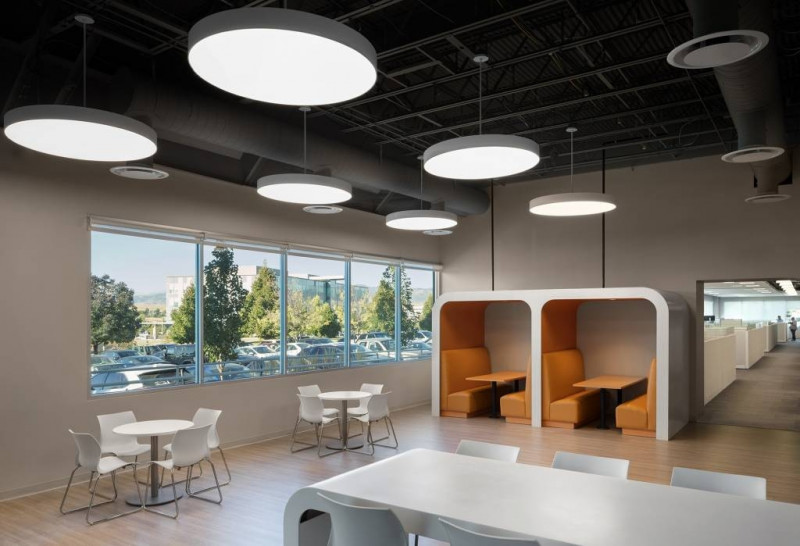

Can be used with opt. accessories as pendant light

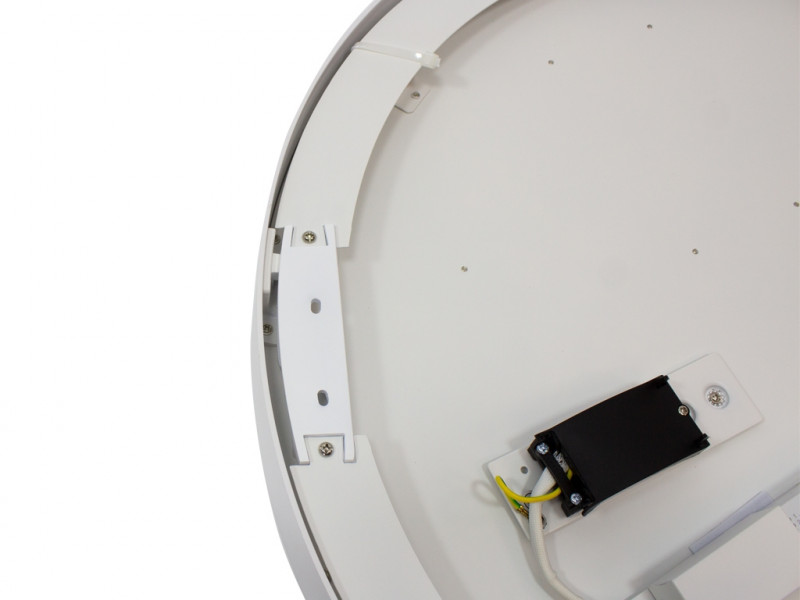

Fangseil und Drehhalterung
Dali dimmbarer Treiber

Technical Data Sheet (PDF)

Runde LED-Wand-/Deckenleuchte mit hochwertigem blackem Aluminiumgehäuse more

Zurück

Runde LED-Wand-/Deckenleuchte mit hochwertigem blackem Aluminiumgehäuse
Vorschaltgerät: LED-Treiber
Dimmfähig: ja
Temperaturbereich: -20°C - 45°C
Lichtstrom: 10000 lm
LED-Leistung: 100 W
Leuchten-Lichtausbeute: 100 lm/W
Farbtemperatur: 4000 K
Lichtfarbe: neutralwhite
Farbwiedergabeindex (Ra): >80
Farbtoleranz (SDCM): <4
Abstrahlwinkel: 110°
UGR: 21
Lichtaustritt: direkt
Maße: 1000x82 mm
Montageart: Aufbau (Decke,Wand)
Schutzklasse (DIN EN 61140): I
Schutzart (DIN EN 60529): IP20
Stoßfestigkeitsgrad (IEC 62262): IK03
Außenfarbe: black
Gehäusematerial: Aluminium
Gehäusebeschichtung: pulverbeschichtet
Abdeckung: prismatisch
Nettogewicht: 15470 g
Garantie: 5 Jahre
Mittlere Lebensdauer (L80/B20): 50000 h
