DURATA LINE 30-840-2400LM NB Dali Dim

LG14384WDIM
Prices are only visible after login.

Availability: Ready to ship today, Delivery time appr. 1-3 workdays

Dimensions

Dimensions
  • LG14384WDIM
  • Luminous Flux: 2400 lm
  • Power Draw: 30 W
  • Light Color: neutralwhite (4000 K)
  • Input Current: AC 200-240V, 50/60Hz
  • Color Rendering Index (CRI): ≥80 Ra
  • IP Code: 20
  • Beam Angle: 60°
  • LED-Chip: San'an SMD 2835
  • Housing Color: white
  • Dimensions: 1550x50x95 mm
  • Warranty: 5 years

Luminous Flux

2400
lm

Power Draw

30 W

Light Color

4000 K
neutralwhite

Color Rendering Index (CRI)

CRI
>80 Ra

IP Code

IP 20

Beam Angle

60°

mounting type

Light Direction

Dimensions

(LxBxH) in mm
1550x50x95

Warranty

5 years

The light source may only be replaced by qualified persons

The driver may only be replaced by qualified persons

Linear Office LED light line system   Durata Line is a modular LED light line... more
Product information "DURATA LINE 30-840-2400LM NB Dali Dim"
Linear Office LED light line system

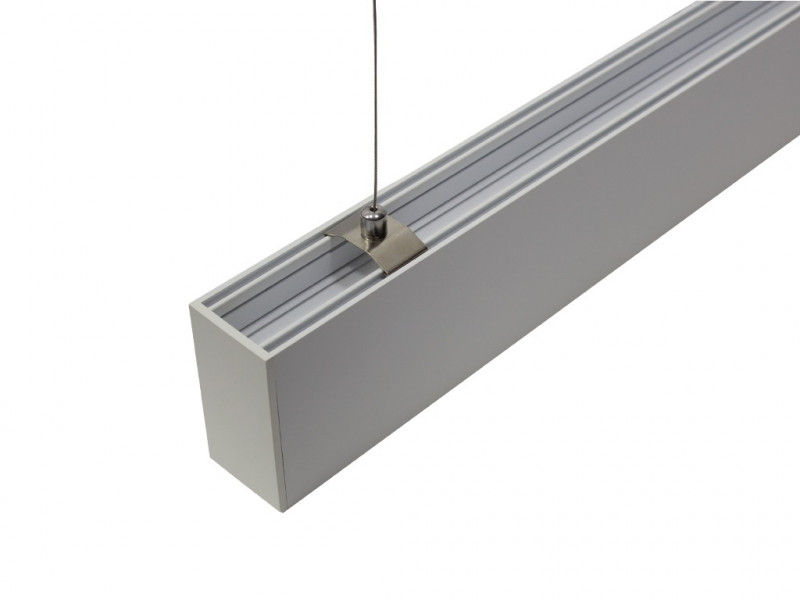

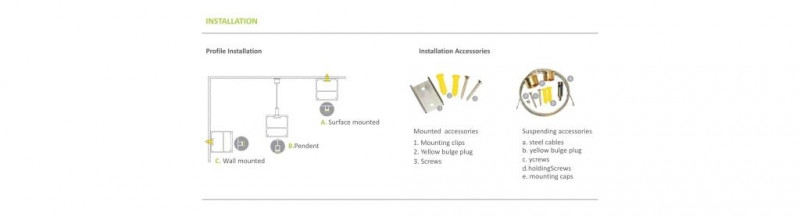

Durata Line is a modular LED light line system for offices, schools and retail spaces.  The lights can be fastened directly to the ceiling with clips or suspended using steel cable sets. Durata Line is available in different versions such as different beam angles, light colors and optimized glare control, for example for computer workstations.
Available housing colors: black or white

Technical specifications:

  • modular light line system for Office, shop or schools
  • High energy savings through high system efficiency of up to 105 lumens / watt
  • optionally also available with dimmable drivers
  • eye-friendly optics with optimized glare control UGR <19 and flicker-free light

selectable beam angle:
100 ° UGR: 20, 70 ° UGR <19 ;, 66 ° UGR <13, 43 ° UGR <6, asymmetric 60 °
Related links to "DURATA LINE 30-840-2400LM NB Dali Dim"
Technical Details:

Luminous Flux: 2400 lm
LED Output: 29 W
Light Yield: 80 lm/W
Light Temperature: 4000 K
Light Color: neutralwhite
Color Rendering Index: ≥80 Ra
Color Consistency (SDCM): <4
Beam Angle: 60 °
Unified Glare Rating (UGR): 13
Light Emission: downward
Dimmable: ja
Method of Dimming: DALI
LED-Chip Manufacturer: San'an
LED-Chip: SMD 2835
Ignition Time: <0,5 s
Input Current: AC 200-240V, 50/60Hz
Power Consumption: 30 W
Driver Manufacturer: Boke
Power Factor (PF): >0.95
Input Driver: plug connector
Output of Driver: DC 38V, 800mA
CC/CV: CC
Input Lamp: plug connector
Switching Cycles: >100.000
Electrical Protection Class: I
Ambient Temperature (TA): -10°C - 40°C
Storage Temperature: -20°C - 55°C
Dimensions: 1550x50x95 mm
Mounting: Decke
Montageart: surface mounted
IP Class: 20
IK Code: 07
Housing Color white
Housing Material: aluminum
Coating: powder-coated
Special Feature of Housing: modular
Cover: frost mit Raster
Net Weight: 2810 g
Type of Packaging: box
Dimensions of Packaging: 1560x60x105
Weight incl. Packaging: 3.04 kg
Content Master Package: 8
Dimensions of Master Package: 1580x265x245 mm
Weight Master Package: 26,5 kg
Product Line: Advance Line
Warranty 5 years
Operating Hours: >50.000 h L80/B20
Disposal Obligation: ja
Customs Tariff Number: 9405499090
Certifications CE,D
Barcode: 4250557824659
Elegante, modulare Lichtlinienleuchte für Büros
Dali dimmbare Treiber enthalten
optional 5 unterschiedliche LED-Optiken lieferbar
Für Bildschirmarbeitsplätze geeignet
Zuleitung 1,5m black 3 x 0,75mm²
